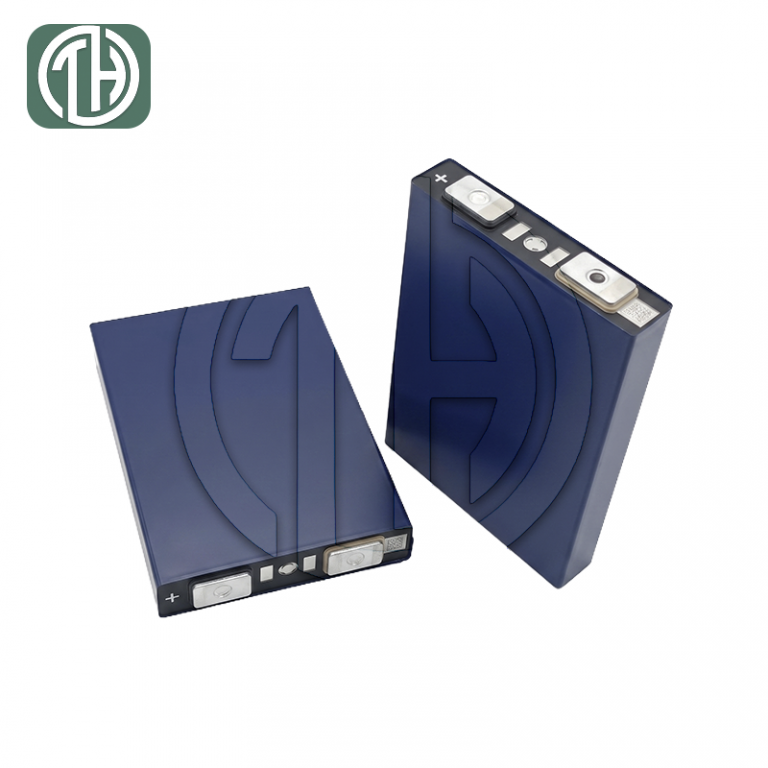

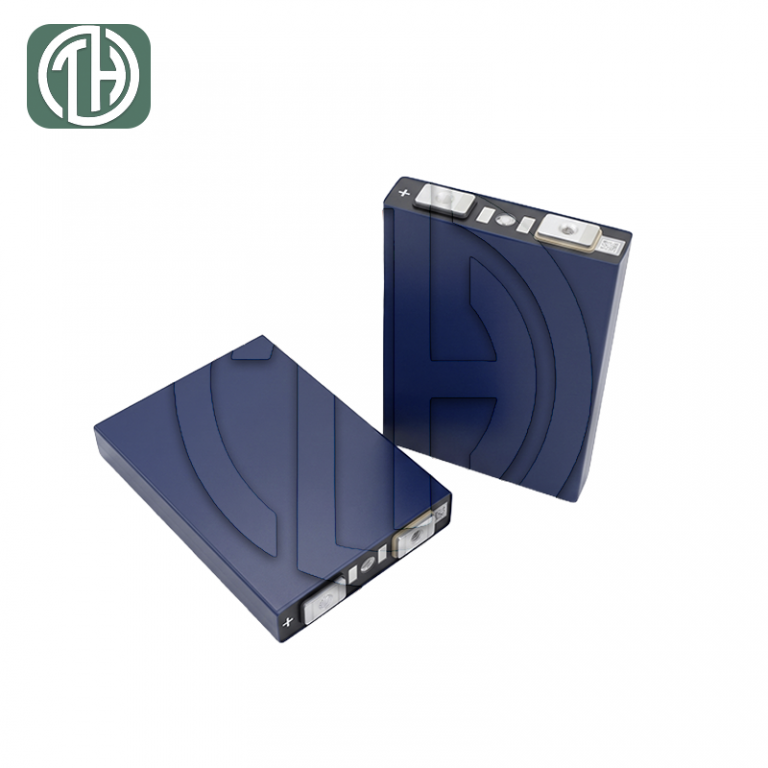

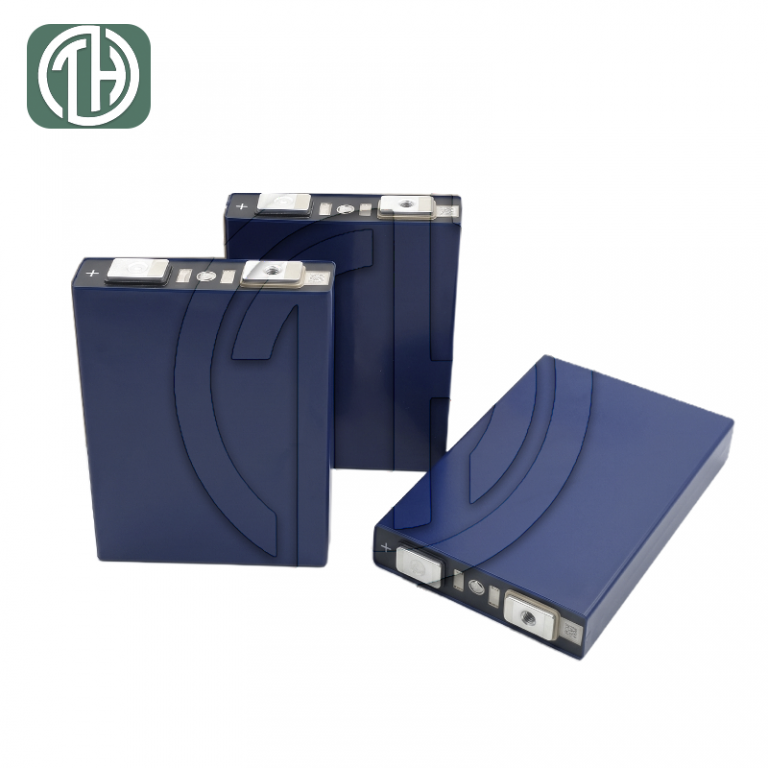

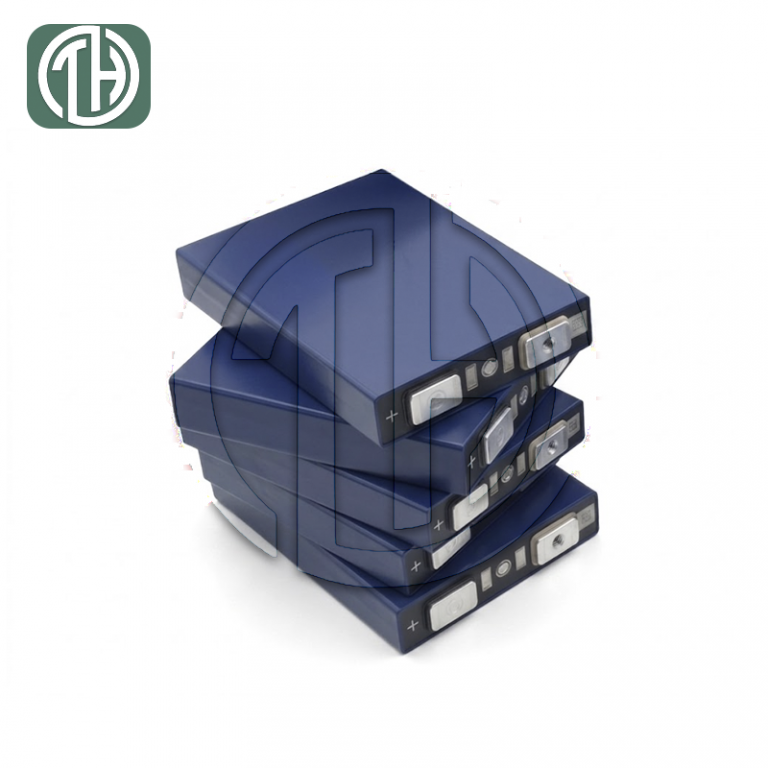

The Gotion IFP20100140A is a high-performance prismatic Lithium Iron Phosphate (LFP) battery cell designed for high-power and high-cycle applications. Featuring a nominal voltage of 3.2V and a rated capacity of 27Ah, this cell delivers stable performance, excellent safety, und lange Lebensdauer.
With a maximum continuous discharge rate of 4C and pulse discharge capability up to 6C–10s, the cell is well suited for electric mobility, Energiespeichersysteme, and industrial equipment applications.
Engineered with high safety standards, the cell has passed UN38.3, Sicherheitsdatenblatt, RoHS, DIES, TUV, and UL certifications, ensuring reliable operation in demanding environments.
Schlüsselvorteile
High Safety Performance
Qualified for UN38.3, Sicherheitsdatenblatt, RoHS, DIES, TUV, and UL certifications with enhanced operational safety.
Langkreislebensdauer
Mehr als 5000 cycles under recommended operating conditions.
High Power Capability
Supports up to 4C continuous discharge and 6C pulse discharge for high-demand applications.
Integrated Safety Design
Equipped with an integral safety valve to improve operational protection and reliability.
Hohe Energiedichte
Delivers ≥140 Wh/kg energy density while maintaining stable thermal performance.
Compact Prismatic Structure
Slim prismatic design enables flexible module and PACK integration for customized battery systems.
IFP20100140A-27Ah Technical Specification
Kategorie
Artikel
Spezifikation
Grunddaten
Nennspannung
3.2V.
Nennleistung
27Ah
Betriebsspannung
2.0V – 3,65 V
AC-Innenwiderstand
0.9 mΩ ± 0.3 mΩ
DC Internal Resistance
≤3.0 mΩ
Energiedichte
Gravimetrische Energiedichte
≥140 Wh/kg
Maße
Größe (T × W × H)
(21.3±0.9) × (100.5±0.5) × (144.8±0.5) mm
Gewicht
605 g ±18 g
Betrieb
Aufladen / Entladungstemperatur
10°C – 35°C
Lagertemperatur
-40°C – 60°C
Maximaler kontinuierlicher Entladestrom
4C.
Max Pulse Discharge Current
6C. / 10so
Certifications
Safety Certifications
UN38.3 / Sicherheitsdatenblatt / RoHS / DIES / TUV / UL
Anwendungen
Elektromobilität
Suitable for electric bicycles, electric scooters, motorcycles, electric wheelchairs, and electric vehicles.
Energiespeichersysteme (ESS)
Applicable for home solar energy storage systems, Wohn-ESS, UPS backup systems, and commercial energy storage applications.
Industrial & Elektrowerkzeuge
Widely used in power tools, electric forklifts, household appliances, und industrielle Energiesysteme.
Marine & Specialty Equipment
Can be integrated into ships, submarines, Golfwagen, and other specialized electric equipment requiring stable LFP battery performance.
