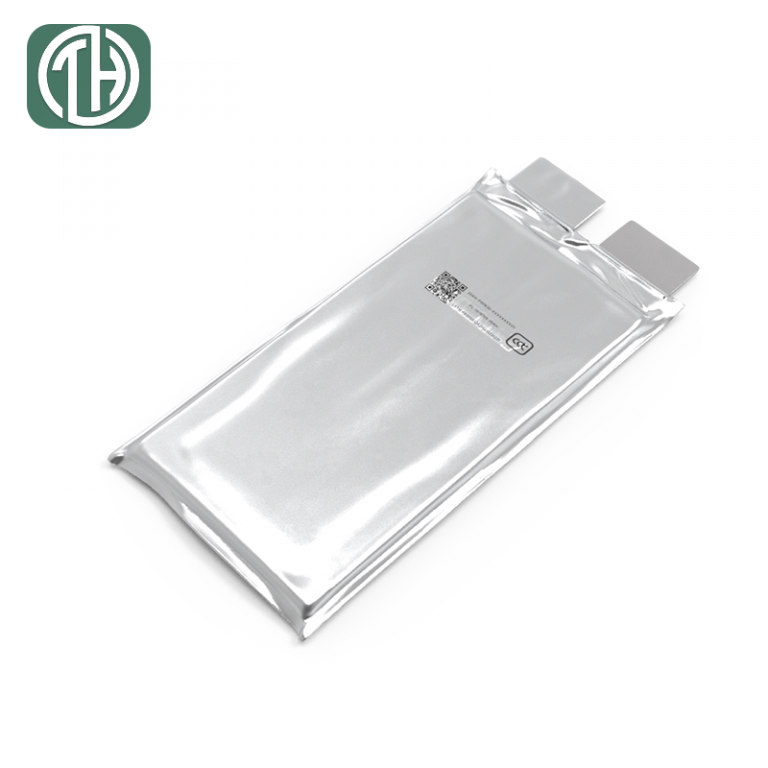

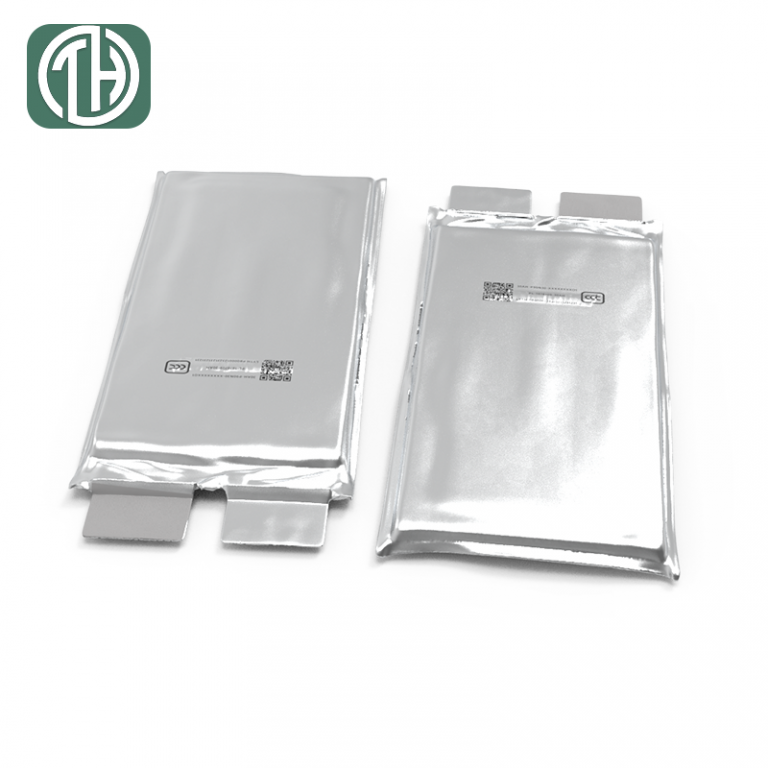

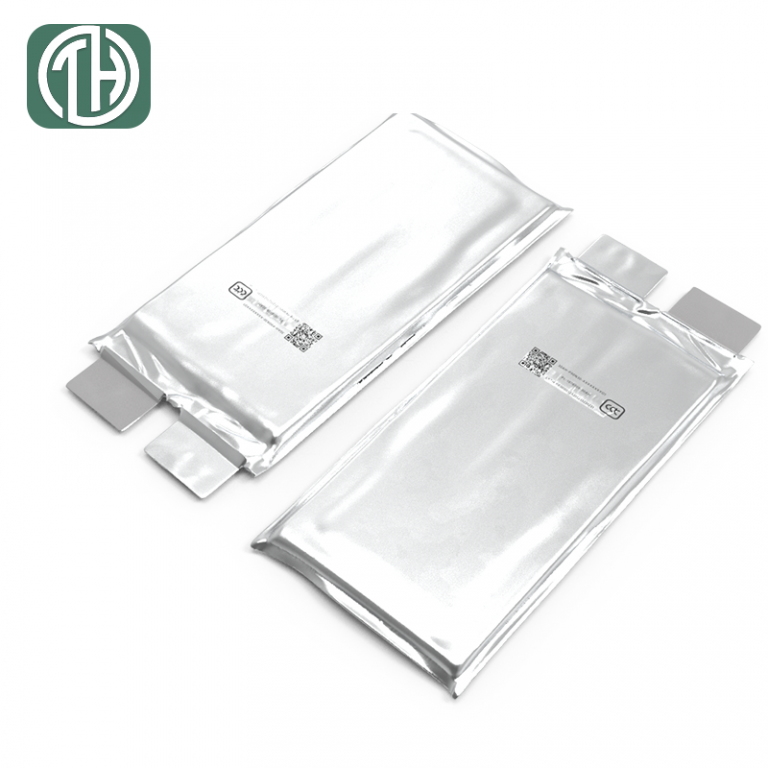

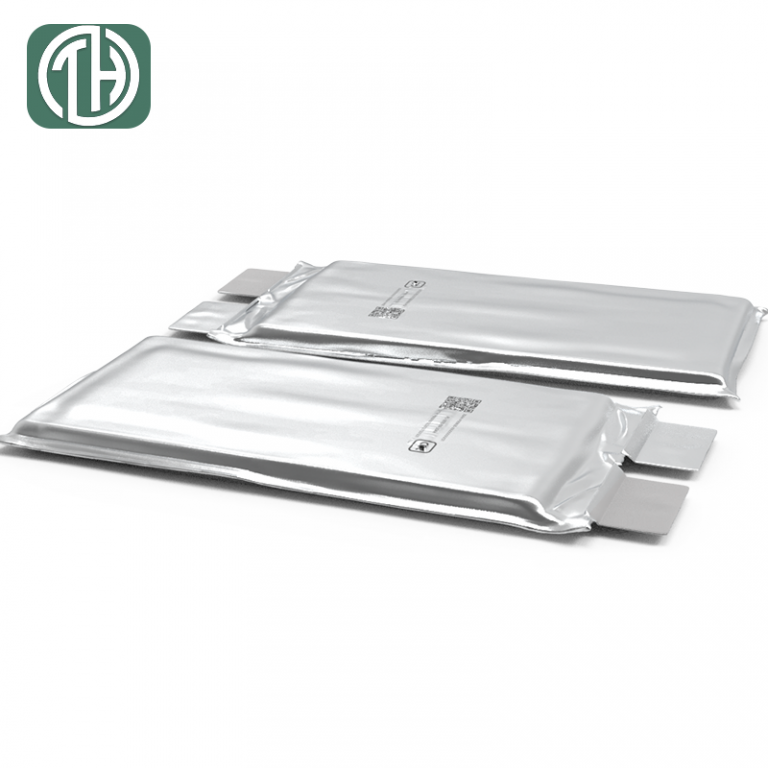

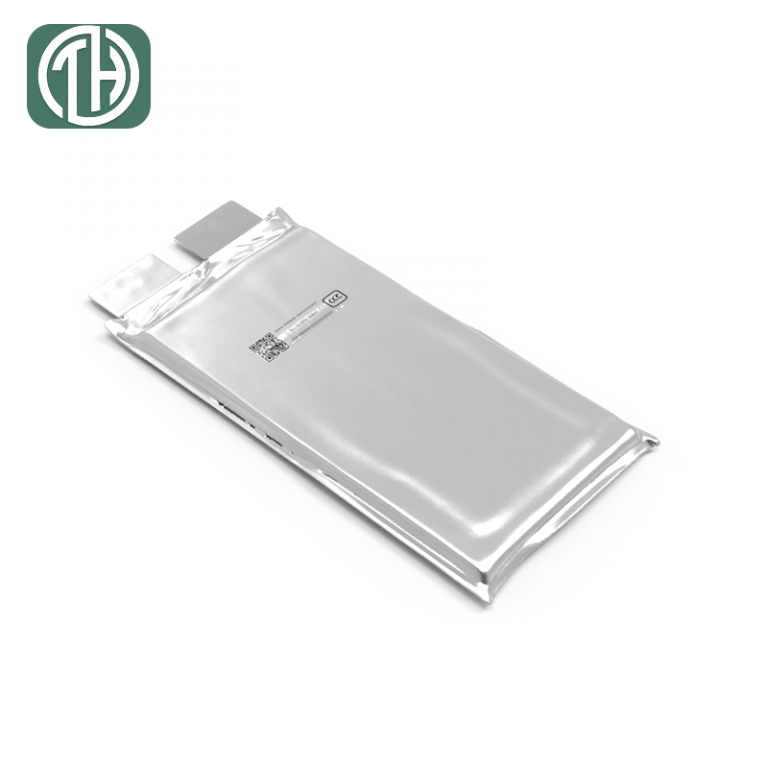

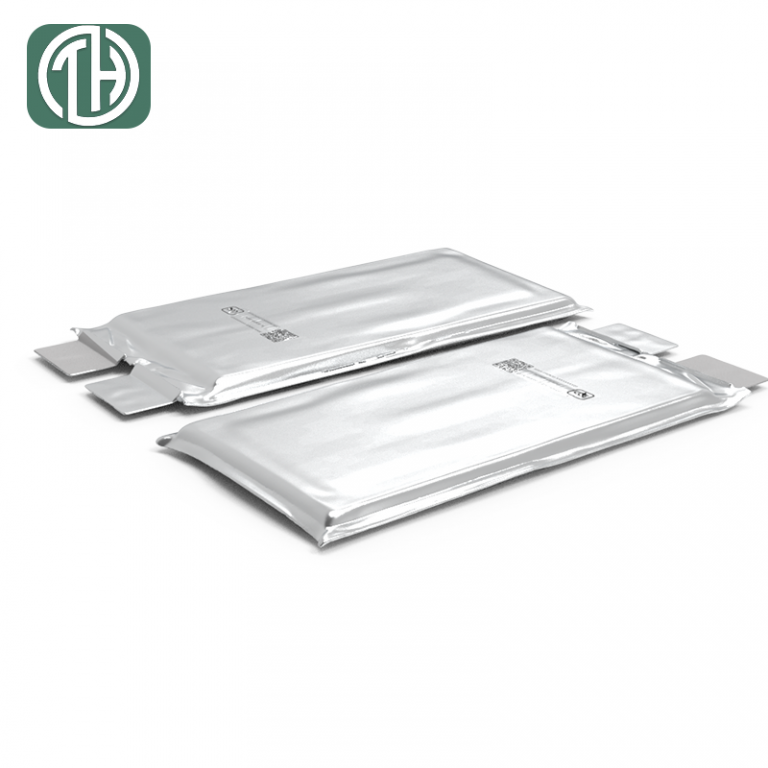

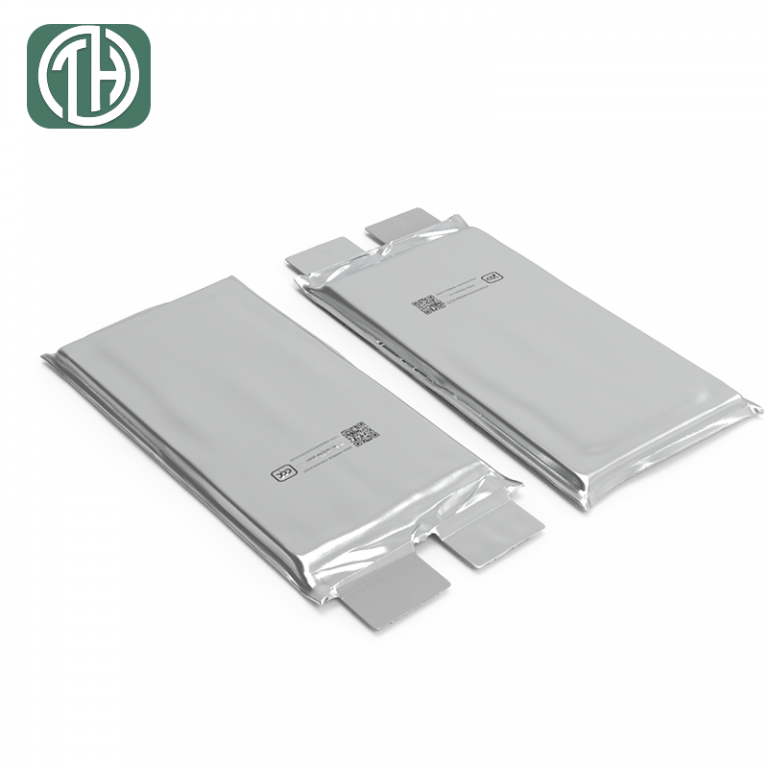

CALB P90N30 3.6V 30Ah High-Energy Density NCM Pouch Cell
CATEGORÍA Y ETIQUETAS:Celda de batería de iones de litio
Detalles del producto
Lugar de origen: China
Nombre de la marca: CALVO
Proceso de dar un título : ESTA, UN38.3, MSDS
Número de modelo: P90N30
Tipo de Batería : NMC
Términos de envío
Detalles de embalaje cajas de cartón , paletas o cajas de madera contrachapada
Condiciones de envío: EXW, ENGAÑAR, CIF, DDU, DDP
Forma de envío: En avión, por mar, por tierra
Condiciones de pago
Precio minorista/precio mayorista negociable
Condiciones de pago T/T (Transferencia bancaria)
- Especificaciones
The P90N30 is a high-performance rechargeable Lithium Nickel Manganese Cobalt Oxide (NCM) cell developed by CALB. Engineered specifically for industrial UAVs and Vertical Take-Off and Landing (VTOL) platforms, this cell breaks the technical barrier between lightweight design and extreme environment adaptability. It delivers an industry-leading energy density of 317 Wh/kg while maintaining exceptional -43° C cold-start capability and 10C burst power output.
【Core Advantages】
Ultimate Lightweight Design: Boasting a gravimetric energy density of approx. 317 Wh/kg, providing significantly longer flight endurance for drones at the same takeoff weight.
All-Weather Operational Capability: Features an ultra-wide discharge temperature range from -43°C to 55°C. It retains ≥85% of its initial capacity even in harsh -20° C environments.
Massive Power Redundancy: Supports short pulse discharge up to 300UNA (10C) for 5 seconds, effortlessly handling heavy-lift takeoffs and rapid attitude corrections in high-wind conditions.
Automotive-Grade Safety: Developed in accordance with ES 38031-2020 safety standards for electric vehicles, ensuring top-tier reliability for high-value assets.
【Technical Specifications】
| Elementos | Parámetros |
| Product Name | P90N30 Lithium-ion Battery |
| Voltaje nominal | 3.6V |
| Capacidad nominal | 30Ah (1C @ 2.5-4.25V) |
| Tensión de funcionamiento | 2.5V ~ 4.25V (Normal) / 2.2V ~ 4.25V (Low Temp) |
| Peso de la celda | 340g ± 5g |
| Densidad de energia | ≈ 317 Wh/kg |
| Resistencia interna | 0.8 ~ 1.2 mΩ (AC 1kHz, 20% SOC) |
| Max. Continuous Discharge | 90UNA (3C) |
| Max. Pulse Discharge | 300UNA (10C, 5s) |
| Operating Temp (Descarga) | -43°C ≤ T ≤ 55°C |
| Material de la cáscara | Aluminum Laminated Film |
【Integration Requirements】
Restraining Force: To ensure optimal interfacial contact and long cycle life, a mandatory restraining force of at least 2000norte must be applied during pack assembly.
Ciclo de vida: Provides ≥500 cycles (80% capacity retention) at room temperature when maintained under 1000-3000N of clamping force.
Charging Restriction: The absolute charging temperature range is 0° C < T ≤ 55°C. Charging at or below 0°C is strictly prohibited.
Voltage Protection: The standard discharge cut-off voltage is 2.5V. The BMS must prevent the cell voltage from dropping below 1.5V to avoid permanent internal damage.
【Primary Applications】
VTOL (Vertical Take-Off and Landing): High energy density for extended range combined with 10C burst power for takeoff.
Extreme Cold Inspection: Reliable -43°C discharge capability for winter power line and pipeline inspections in arctic climates.
Emergency Rescue & Heavy Transport: Automotive-grade safety standards for robust power delivery during critical heavy-lift missions.
