Product Details
Place of Origin: China
Brand Name: SVOLT
Certification : CE, UN38.3, MSDS
Model Number: CE1L4L36B
Battery type : NMC
Shipping Terms
Packaging Details cartons , pallets or plywood cases
Shipping terms: EXW, FOB, CIF, DDU, DDP
Shipping way: By air, by sea, by land
Payment Terms
Retail Price/Wholesale Price Negotiable
Payment Terms T/T (Wire transfer)
The Svolt 117Ah NMC Ternary Lithium Battery is a high-performance, long-life lithium-ion battery cell suitable for electric vehicles (EVs), energy storage systems (ESS), and high energy-density power applications. With exceptional energy density and reliable safety, this cell delivers stable and efficient power for your battery modules and systems.
Key Features:
High Energy Density: Approximately 230–240 Wh/kg, lightweight design maximizes energy storage per unit weight.
Long Cycle Life: ≥1400 charge-discharge cycles, ideal for long-term use.
Safe and Reliable: Strictly designed and tested to meet international safety standards.
Wide Applications: Suitable for EVs, e-motorcycles, energy storage systems, and other high-power demand scenarios.
Compact Design: Brick-shaped structure, easy for modular assembly and installation.

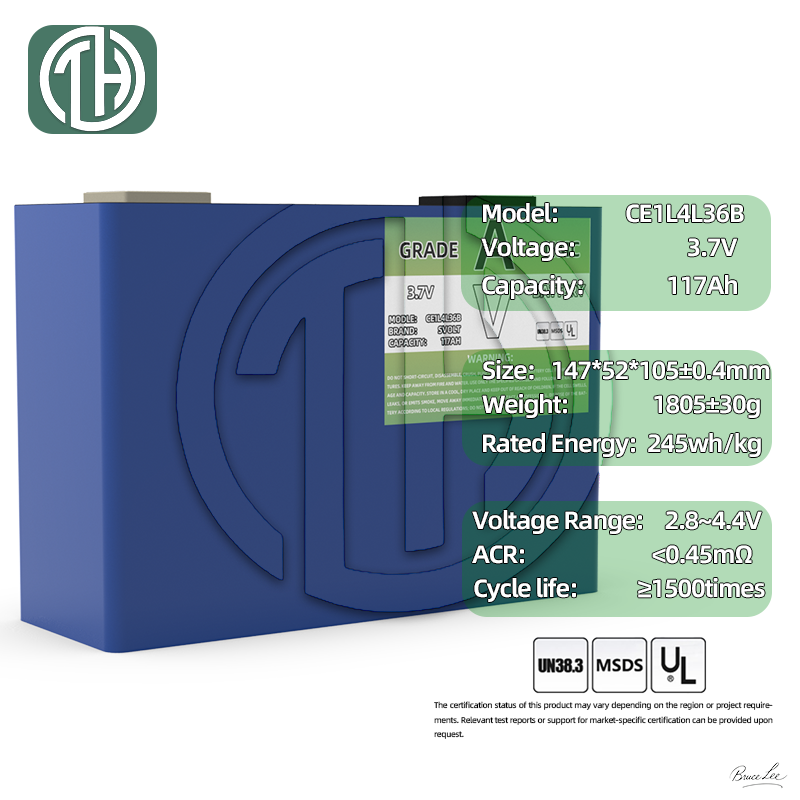

Technical Specifications (Reference):
| Parameter | Specification |
|---|---|
| Nominal Capacity | 117 Ah (1/3C discharge to 2.8 V) |
| Nominal Voltage | 3.7 V |
| Energy | 438.7 Wh |
| Internal Resistance | AC ≤0.4 mΩ; DCR ≤0.8 mΩ |
| Dimensions | 146 × 50 × 102.8 mm |
| Weight | 1805 ± 30 g |
| Operating Temperature | Charge: -20~55 °C, Discharge: -30~55 °C |
This battery is an ideal choice for high-performance EVs and energy storage systems, providing reliable and efficient power for your applications.
