With the growth of energy storage and electric vehicle markets, 125 Ah LiFePO₄ (LFP) cells have become key components. CALB and EVE cells offer excellent performance, but due to supply constraints and production focused on large-scale orders, they are currently difficult to procure.

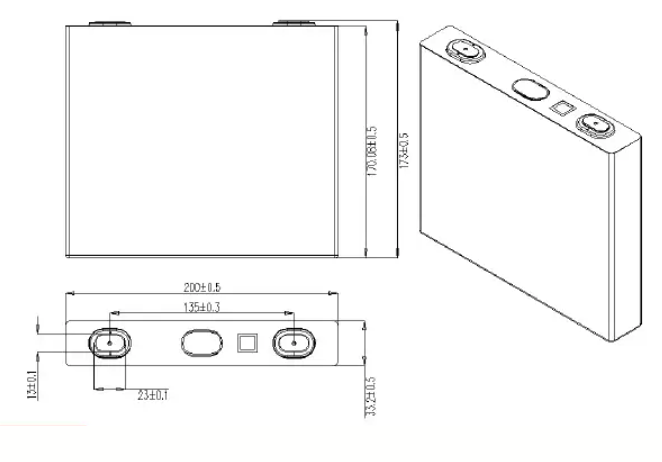

In contrast, Lishen 125 Ah cells are readily available and serve as a practical alternative. With dimensions of 200 × 33.2 × 173 mm, Lishen cells are similar to EVE, allowing existing battery pack designs to adapt without major layout changes.
Key Technical Comparison of 125 Ah LiFePO₄ Cells
Parameter
CALB 125Ah
EVE 125Ah
Lishen 125Ah
Brand / Model
CALB L173F125 / L173F125B
EVE LF125P
Lishen LP33200173‑125Ah
Chemistry
LiFePO₄
LiFePO₄
LiFePO₄
Rated Capacity
125 Ah
125 Ah
125 Ah
Nominal Voltage
3.2 V
3.22 V
3.2 V
Cycle Life
≥4000 cycles (80% DOD)
~4000 cycles (25 °C)
~3000 cycles (80% DOD)
Internal Resistance
≤0.9 mΩ
0.40 ± 0.05 mΩ
≤0.5 mΩ
Dimensions (L×W×H mm)
174.4 × 36.4 × 178.0
200.7 × 33.25 × 172.0
200 × 33.2 × 173
Weight
2.45 ± 0.15 kg
2.39 ± 0.07 kg
2.45 ± 0.10 kg
Standard Charge/Discharge Current
1C / 1C
0.5C / 0.5C (max 3C pulse)
1C / 1C
Operating Temperature
Charge 0~60 °C, Discharge -30~60 °C
Charge -10~65 °C, Discharge -35~65 °C
Charge 0~60 °C, Discharge -30~60 °C
Terminal Type
M6 bolt hole
Standard terminal
Standard terminal
Recommended Applications
EV / ESS / UPS / RV
EV / Heavy‑duty / ESS
RV / ESS / General power systems
In terms of size, weight, and performance, the three 125 Ah LiFePO₄ cells each have their strengths. Lishen and EVE cells are similar in length and slightly narrower than CALB, while CALB is thicker but shorter. All three cells weigh approximately 2.39–2.45 kg. EVE offers the lowest internal resistance (~0.40 mΩ), making it ideal for high-rate applications, whereas Lishen provides low resistance with stable performance, and CALB has slightly higher resistance but excellent consistency. Regarding cycle life, CALB and EVE last around 4000 cycles, while Lishen provides about 3000 cycles, suitable for general energy storage or light-duty applications. In terms of operating temperature and charge/discharge current, EVE supports the widest range, including short-term 3C pulses, while CALB and Lishen are stable at 1C standard charge/discharge, suitable for most ESS and auxiliary power systems.
Considering these differences, the physical dimensions of each cell are an important factor when designing battery packs:
Brand
Length
Width
Height
CALB 125Ah
174.4
36.4
178.0
EVE 125Ah
200.7
33.25
172.0
Lishen 125Ah
200
33.2
173
For manufacturers and integrators seeking reliable and readily available 125 Ah LiFePO₄ cells, Lishen 125 Ah is the smart choice. It combines stable performance, low internal resistance, and dimensions compatible with standard designs, allowing easy integration into energy storage systems, RVs, UPS, and general power applications. With consistent quality and fast supply, Lishen 125 Ah helps you keep projects on schedule without compromising performance.
As a professional battery supplier, Luoyang Tianhuan is dedicated to providing customers with high-quality cells, flexible supply, and comprehensive technical support. Whether for bulk purchases or customized needs, we can deliver efficient and reliable solutions, making Lishen 125 Ah cells the best guarantee for the success of your projects.
