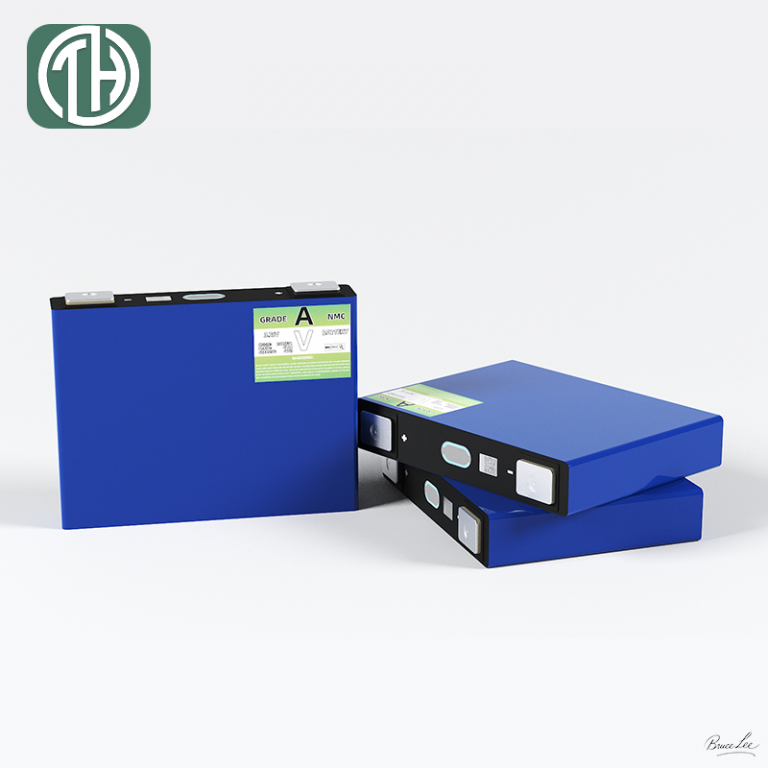

CALB L148N63A 64Ah NMC Prismatic Battery Cell

The CALB L148N63A is a compact prismatic lithium-ion battery cell developed for automotive battery module integration and high-energy vehicle power systems. With NMC chemistry, stable voltage behavior, and strong volumetric energy density, this model is well suited for EV battery applications that require a balance of energy performance, packaging efficiency, and fast charging capability.

Its compact cell format makes it attractive for battery module designers looking for flexible packaging layouts and efficient system integration. The L148N63A is especially suitable for vehicle battery platforms, custom module projects, and other mobility applications where space efficiency and stable electrical performance are important.

Key Features

• Compact prismatic NMC battery cell for vehicle battery integration
• Rated capacity 62.5Ah at 1C discharge and 64Ah at standard discharge
• Rated voltage 3.67V at 1C and 3.73V at standard discharge
• Rated energy up to 238.72Wh
• Fast charging capability: <=20 min from 30%-80% SOC
• High volumetric energy density: 550Wh/L
• Suitable for EV battery modules and automotive pack development

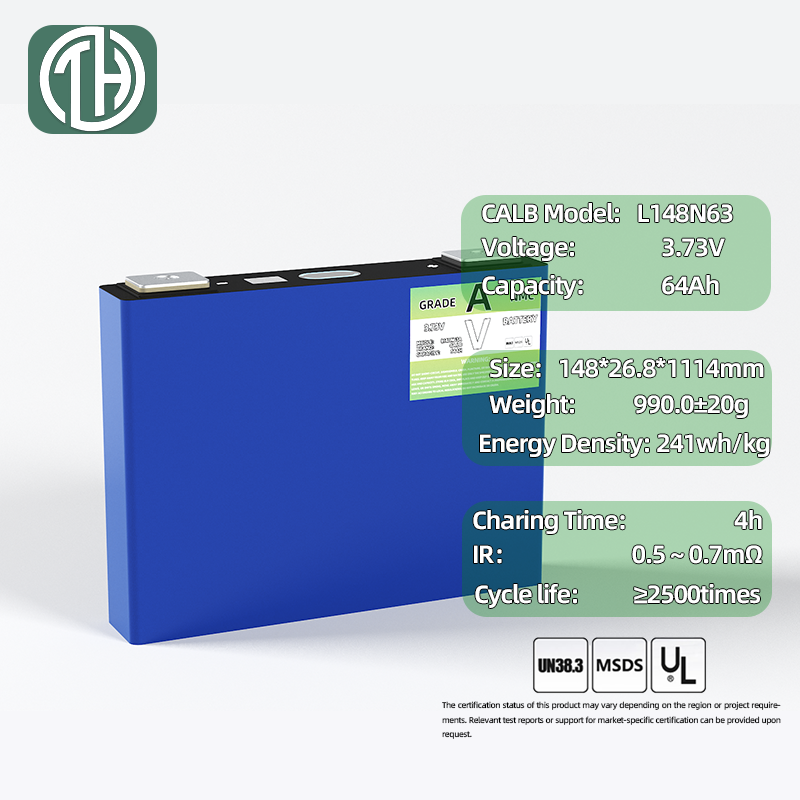

Technical Highlights

• Brand: CALB
• Model: L148N63A
• Chemistry: NMC
• Rated Capacity:
  • 62.5Ah at 1C discharge
  • 64Ah at standard discharge
• Rated Voltage:
  • 3.67V at 1C discharge
  • 3.73V at standard discharge
• Rated Energy:
  • 229.37Wh at 1C discharge
  • 238.72Wh at standard discharge

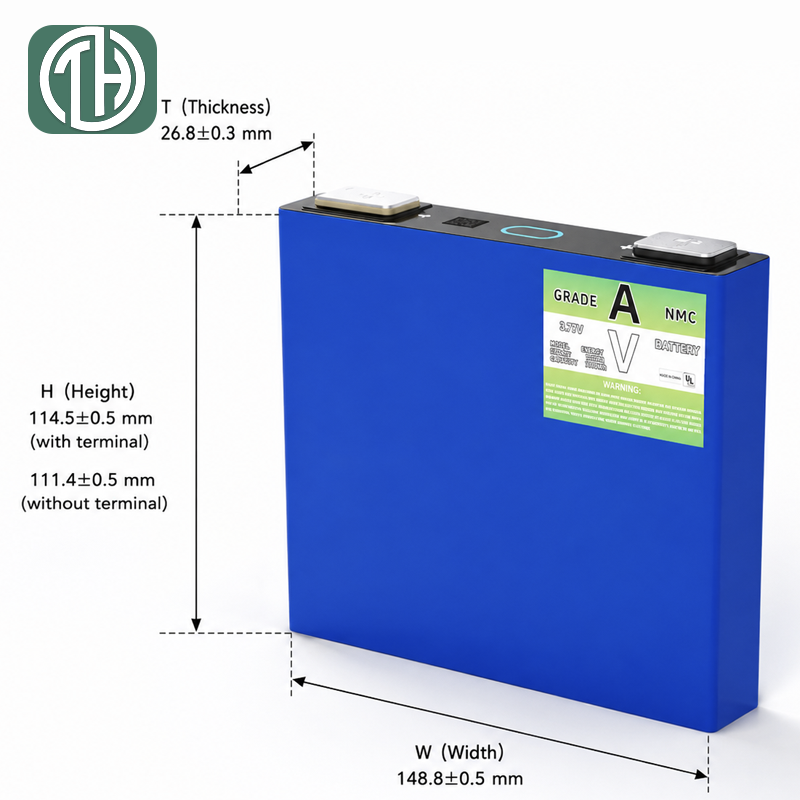

• Dimensions:
  • Width: 148.8 +- 0.5 mm
  • Thickness: 26.8 +- 0.3 mm
  • Height with terminal: 114.5 +- 0.5 mm
  • Height without terminal: 111.4 +- 0.5 mm
• Weight: 0.990 +- 0.02 kg
• Mass Energy Density: 240Wh/kg
• Volume Energy Density: 550Wh/L
• Charge Temperature: -20C to 55C
• Discharge Temperature: -30C to 55C
• Storage Temperature: -40C to 60C
• Voltage Range:
  • 2.80-4.35V at 0C to 55C
  • 2.50-4.35V at -30C to below 0C

Application Positioning
The CALB L148N63A is positioned for automotive battery modules, EV battery systems, and customized mobility battery projects. Its compact form factor and strong volumetric energy density make it a practical choice for module architectures where installation efficiency and electrical consistency matter.

Commercial Value
For overseas buyers, the L148N63A offers a useful combination of compact packaging, NMC energy performance, and fast-charge capability. It is a strong option for customers developing battery modules for electric mobility, lightweight vehicle platforms, and tailored battery system integration.

Brand Closing
At LYTH, we support customers with battery cell sourcing, module matching, and project-based battery integration. If you are evaluating CALB NMC cells for EV modules or custom battery development, we can support model selection, specification communication, and supply coordination.
