CALB L194F166A 3.2V 166Ah LiFePO4 Prismatic Battery Cell

CATEGORIA E TAG:
Celle della batteria CALB, Celle prismatiche Lifepo4

inchiesta

Specifiche

Panoramica del prodotto

The CALB 3.2V 166Ah LiFePO4 Prismatic Battery Cell is a high-performance lithium iron phosphate (LFP) cell designed for energy storage systems, telecom backup power, solar ESS, UPS systems, and electric mobility applications.

Manufactured by CALB (China Aviation Lithium Battery), this Grade A battery cell delivers excellent safety, durata del ciclo lungo, and high energy efficiency. With a nominal energy of 531Wh per cell and over 4,000 cicli, it provides a reliable and cost-effective solution for long-term energy storage projects.

Caratteristiche principali

Alta densità di energia

With a nominal capacity of 166Ah and nominal voltage of 3.2V, each cell delivers approximately 531Wh of energy, making it ideal for building compact and efficient battery systems.

Long Service Life

The CALB 166Ah LiFePO4 cell provides more than 4,000 charge-discharge cycles while maintaining excellent capacity retention, significantly reducing total ownership costs.

Eccellenti prestazioni di sicurezza

LiFePO4 chemistry offers superior thermal stability and safety compared with conventional lithium-ion technologies, making it suitable for residential, commerciale, e applicazioni di stoccaggio dell'energia industriale.

Low Internal Resistance

Internal resistance ≤0.3mΩ enables efficient charging and discharging with reduced heat generation and energy loss.

Ampia intervallo di temperatura di funzionamento

Designed for demanding environments, the cell supports operation across a broad temperature range for reliable outdoor and industrial use.

Specifiche tecniche

Articolo	Specifica
Tipo di cellula	LiFePO4 (LFP)
Brand	CALVO
Voltaggio nominale	3.2V
Capacità nominale	166ah
Energia nominale	531.2Wh
Charge Cut-off Voltage	3.65V
Tensione di interruzione della scarica	2.5V
Max Charge Rate	1C
Max Discharge Rate	2C
Resistenza interna	≤0.3mΩ
Ciclo di vita	≥4000 Cycles
Charge Temperature	0°C ~ 60°C
Temperatura di scarico	-30°C ~ 60°C
Peso	Approx. 2.86kg

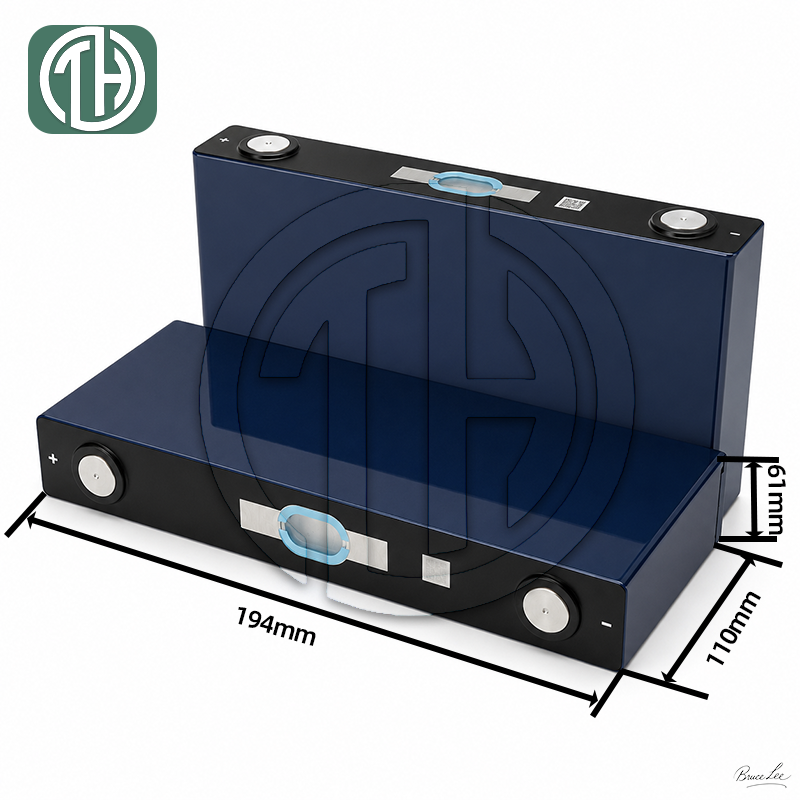

Dimensioni	194 × 61 × 110 mm
Cell Grade	Grado A

Applicazioni

Residential Energy Storage Systems

Suitable for solar energy storage systems, home battery banks, and off-grid power solutions.

Commercial & Industrial ESS

Ideal for peak shaving, load shifting, alimentazione di riserva, and renewable energy integration.

Telecom Backup Power

Provides stable and reliable backup energy for telecom base stations and communication infrastructure.

UPS Systems

Supports uninterrupted power supply systems for data centers, hospitals, and critical facilities.

Mobilità elettrica

Can be integrated into electric vehicles, AGV, electric boats, and specialty vehicles requiring long cycle life and high safety.
