The CALB 3.2V 166Ah LiFePO4 Prismatic Battery Cell is a high-performance lithium iron phosphate (LFP) cell designed for energy storage systems, telecom backup power, solar ESS, UPS systems, and electric mobility applications.
Manufactured by CALB (China Aviation Lithium Battery), this Grade A battery cell delivers excellent safety, long cycle life, and high energy efficiency. With a nominal energy of 531Wh per cell and over 2500 cycles, it provides a reliable and cost-effective solution for long-term energy storage projects.
With a nominal capacity of 166Ah and nominal voltage of 3.2V, each cell delivers approximately 531Wh of energy, making it ideal for building compact and efficient battery systems.
The CALB 166Ah LiFePO4 cell provides more than 2500 charge-discharge cycles while maintaining excellent capacity retention, significantly reducing total ownership costs.
LiFePO4 chemistry offers superior thermal stability and safety compared with conventional lithium-ion technologies, making it suitable for residential, commercial, and industrial energy storage applications.
Internal resistance ≤0.3mΩ enables efficient charging and discharging with reduced heat generation and energy loss.
Designed for demanding environments, the cell supports operation across a broad temperature range for reliable outdoor and industrial use.

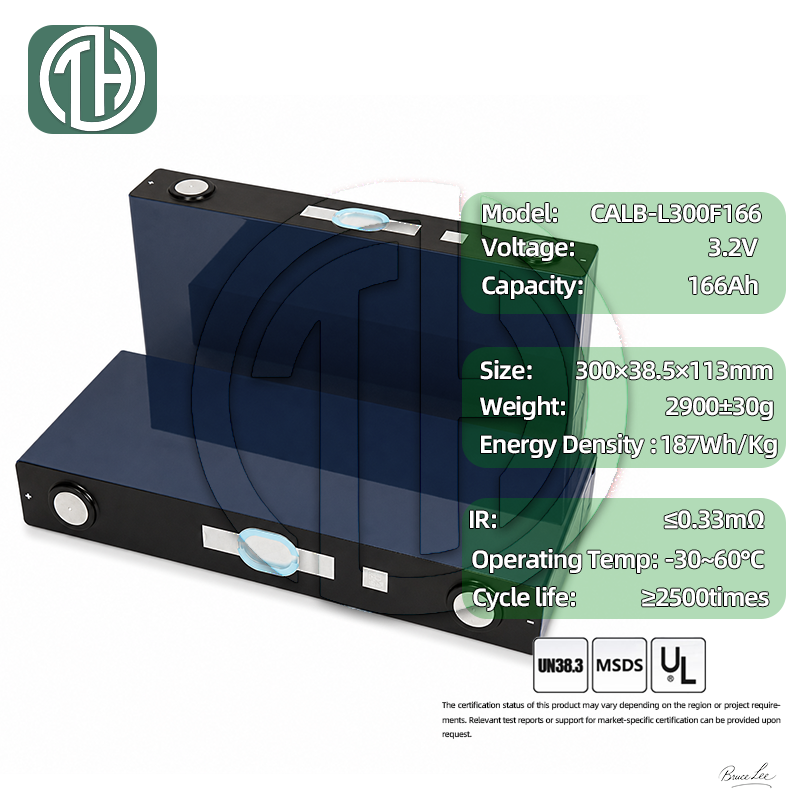

| Item | Specification |
|---|---|
| Cell Type | LiFePO4 (LFP) |
| Brand | CALB |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 166Ah |
| Nominal Energy | 531.2Wh |
| Charge Cut-off Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.5V |
| Max Charge Rate | 1C |
| Max Discharge Rate | 2C |
| Internal Resistance | ≤0.3mΩ |
| Cycle Life | ≥2500 Cycles |
| Charge Temperature | 0°C ~ 60°C |
| Discharge Temperature | -30°C ~ 60°C |
| Weight | Approx. 2.86kg |

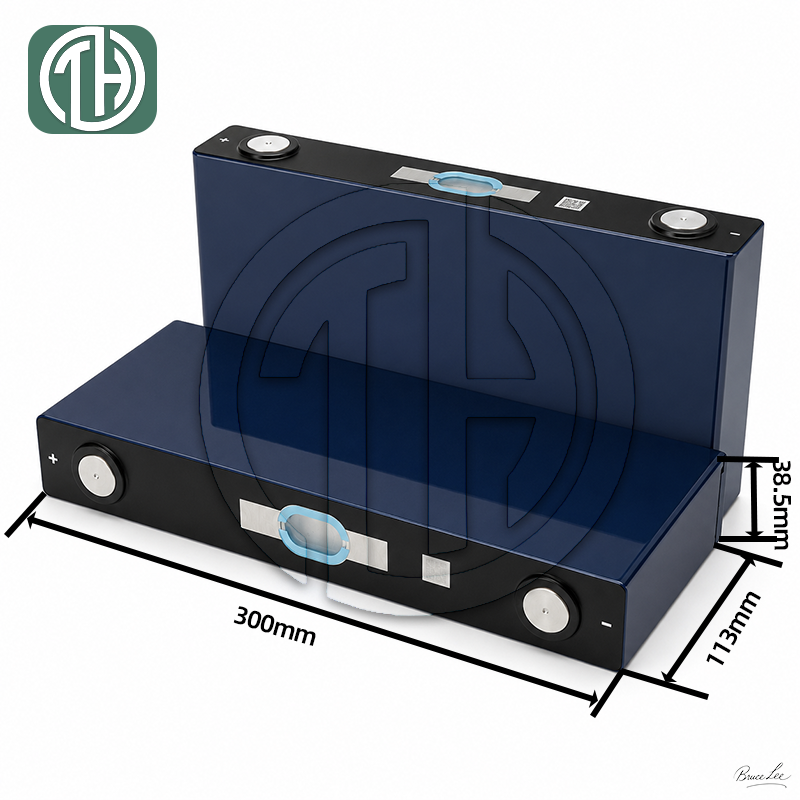

| Dimensions | 300 × 38.5× 113.5 mm |
| Cell Grade | Grade A |
Suitable for solar energy storage systems, home battery banks, and off-grid power solutions.
Ideal for peak shaving, load shifting, backup power, and renewable energy integration.
Provides stable and reliable backup energy for telecom base stations and communication infrastructure.
Supports uninterrupted power supply systems for data centers, hospitals, and critical facilities.
Can be integrated into electric vehicles, AGVs, electric boats, and specialty vehicles requiring long cycle life and high safety.
With extensive experience in lithium battery modules, battery packs, and energy storage systems, LYTH Energy provides reliable battery solutions for customers in over 50 countries worldwide.
