EVE LF150 150Ah LiFePO4 Prismatic Battery Cell

CATEGORY AND TAGS:
EVE Battery Cells, Lifepo4 Prismatic Cells

The EVE LF150 is a 150Ah LiFePO4 prismatic battery cell with a nominal voltage of 3.22V and 483Wh of energy. Its aluminum housing is designed for integration into custom battery modules and packs.

enquiry

Specifications

The EVE LF150 is a 150Ah lithium iron phosphate (LFP) prismatic cell with a nominal voltage of 3.22V and nominal energy of 483Wh. Its aluminum housing and compact format make it a candidate for custom battery module and pack designs where cell dimensions, electrical performance, and integration requirements must be carefully matched.

Under the specified 25°C, 0.5C charge/discharge test, the LF150 is rated to retain 80% state of health after 4,000 cycles. Standard charging and discharging currents are both 75A.

Key Features

150Ah nominal capacity and 483Wh nominal energy
3.22V nominal voltage with LFP chemistry
75A standard charge and discharge current at 0.5C
4,000-cycle specification to 80% SOH under defined 25°C test conditions
Prismatic aluminum housing with blue insulation film

Technical Specifications

Item	Specification
Manufacturer	EVE Power
Model	LF150
Cell type	Prismatic LFP cell
Nominal capacity	150.0Ah
Nominal voltage	3.22V
Nominal energy	483.0Wh
Charge cut-off voltage	3.65V
Discharge cut-off voltage	2.5V above 0°C; 2.0V at or below 0°C
Standard charge / discharge current	75.0A / 75.0A
Initial AC internal resistance	0.40 ± 0.05mΩ; 1kHz, 19–23% SOC, fresh cell
Weight	2,830 ± 84g
Dimensions, including terminals	200.70 ± 0.50 × 33.25 ± 0.50 × 207.00 ± 0.50mm
Height excluding terminals	204.30 ± 0.50mm
Terminal center distance	150.00 ± 0.30mm
Charge temperature	−10°C to 65°C
Discharge temperature	−35°C to 65°C
Cycle-life test	4,000 cycles to 80% SOH at 25°C, 0.5C/0.5C

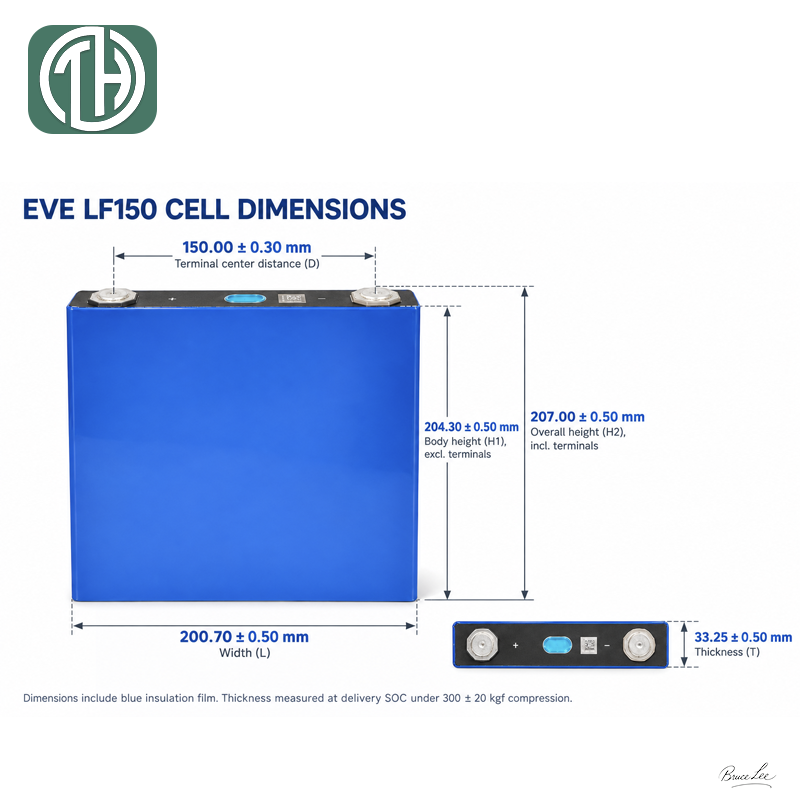

Dimensions and Integration

The listed dimensions include the blue insulation film. The 33.25 ± 0.50mm thickness is specified at delivery SOC under a compression force of 300 ± 20kgf; it should not be treated as an unrestricted free-state thickness. Confirm terminal layout, compression, thermal management, and BMS settings against the approved pack design.

Project Inquiry

LYTH can support LF150 cell sourcing and specification matching for battery module and pack projects. Contact us with your required quantity, application, electrical configuration, and delivery market to confirm current availability and project documentation.
