Product Details
Place of Origin: China
Brand Name: HighStar
Certification: MSDS, UN38.3
Model Number: NaCP50160118
Battery type : SIB
Shipping Terms
Packaging Details: Cartons , pallets or plywood cases
Shipping terms: EXW, FOB, CIF, DDU, DDP
Shipping way: By air, by sea, by land
Payment Ways
Retail Price/Wholesale Price: Negotiable
Payment Terms: T/T (Wire transfer), Paypal
Product Description
The HIGHSTAR NaCP50160118-50H3 sodium-ion battery cell is designed for battery systems that require stable electrical performance, strong rate capability, and practical low-temperature operation. With a nominal capacity of 50Ah and an average operating voltage of 2.86V, this prismatic cell is suitable for battery modules, custom battery packs, and project-based sodium-ion energy system development.
Its compact structure, low internal resistance, and high discharge capability help support efficient pack integration. The cell supports up to 8C continuous discharge, 10C pulse discharge for 30 seconds at full SOC, and offers long cycle life performance, making it a practical option for applications that value safety, cost control, and wider temperature adaptability.

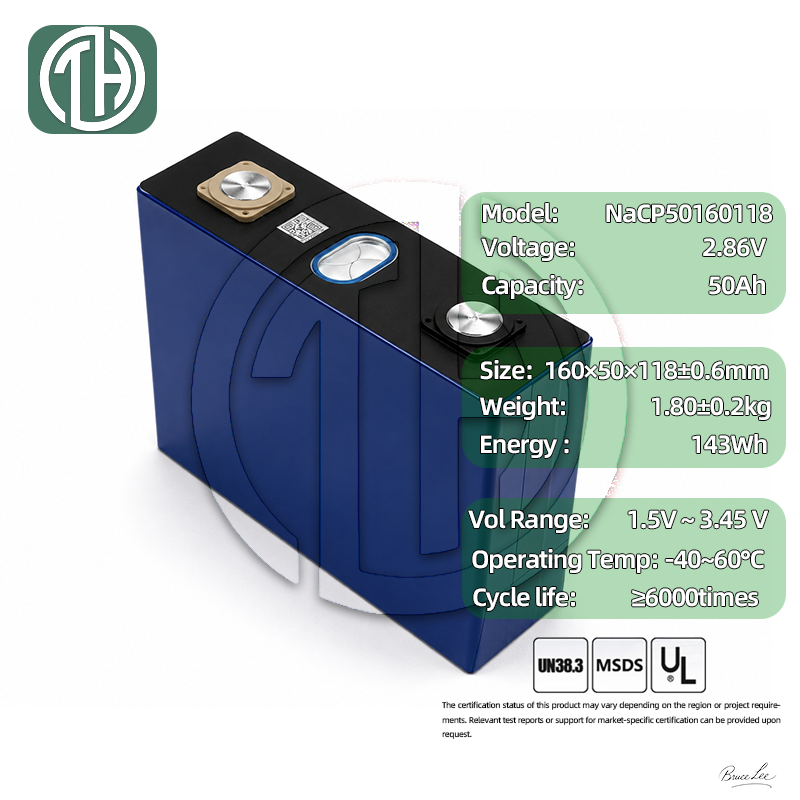

Technical Specifications
| Item | Specification |
|---|---|
| Model | NaCP50160118-50H3 |
| Brand | HIGHSTAR |
| Battery Type | Prismatic Sodium-Ion Battery Cell |
| Chemistry | Sodium-Ion |
| Nominal Capacity | 50Ah |
| Average Operating Voltage | 2.86V |
| Charge Voltage | 3.45V |
| Discharge Cut-off Voltage | 1.5V |
| Standard Charge Current | 0.5C |
| Max Charge Current | 1.0C |
| Standard Discharge Current | 0.5C |
| Max Continuous Discharge Current | 8C |
| Max Pulse Discharge Current | 10C for 30s at 100% SOC |
| Charge Temperature | 0C to 55C |
| Discharge Temperature | -40C to 60C |
| Recommended Storage Temperature | 15C to 35C |
| Weight | 1.8 ±0.2 kg |
| Internal Resistance | <=0.5 mOhm |

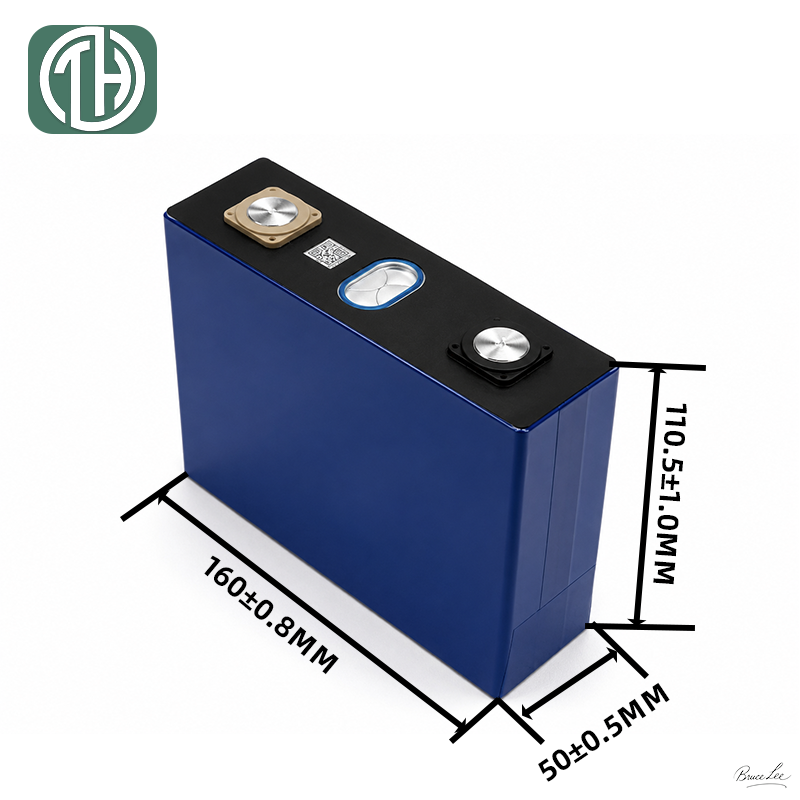

| Dimensions | 50.1 ±1.0 mm x 160 ±0.8 mm x 118.5 ±1.0 mm |
| Terminal Center Distance | 97.0 ±0.3 mm |
| Shipment Voltage | 2.5V to 3.0V |
| Rate Capability | 6C capacity retention >=93% of initial capacity |
| Low Temperature Performance | -20C discharge capacity >=85% of initial capacity |
| High Temperature Performance | 55C discharge capacity >=98% of initial capacity |
| Cycle Life | >=6000 cycles |
Applications and LYTH Support
This sodium-ion battery cell can be used in custom battery packs, sodium-ion battery modules, low-temperature energy systems, and other project-based battery integration applications that require stable output, long cycle life, and wider operating temperature adaptability.
Beyond cell supply, LYTH supports customers with integration services based on real project requirements. We can assist with cell selection, module matching, pack structure coordination, and customized battery solution development for sodium-ion battery applications.
LYTH also supports responsive delivery coordination for samples, trial orders, and volume procurement. For customers developing sodium-ion modules or custom packs, we can provide flexible sourcing support, customization coordination, and faster project response.
