LYTH 1P26S Cell Contact System (CCS) for Energy Storage Battery Modules

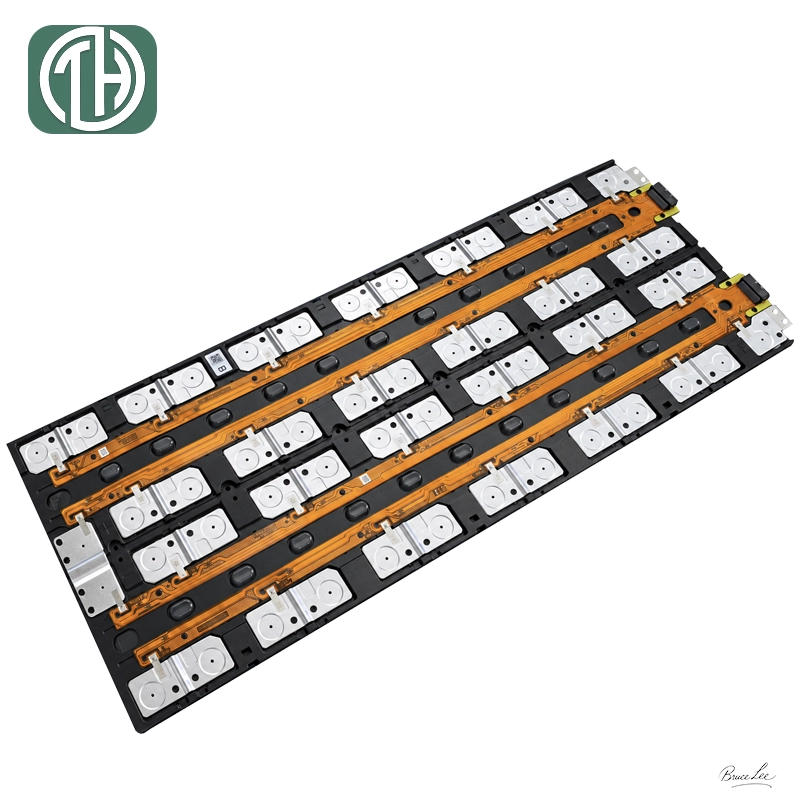

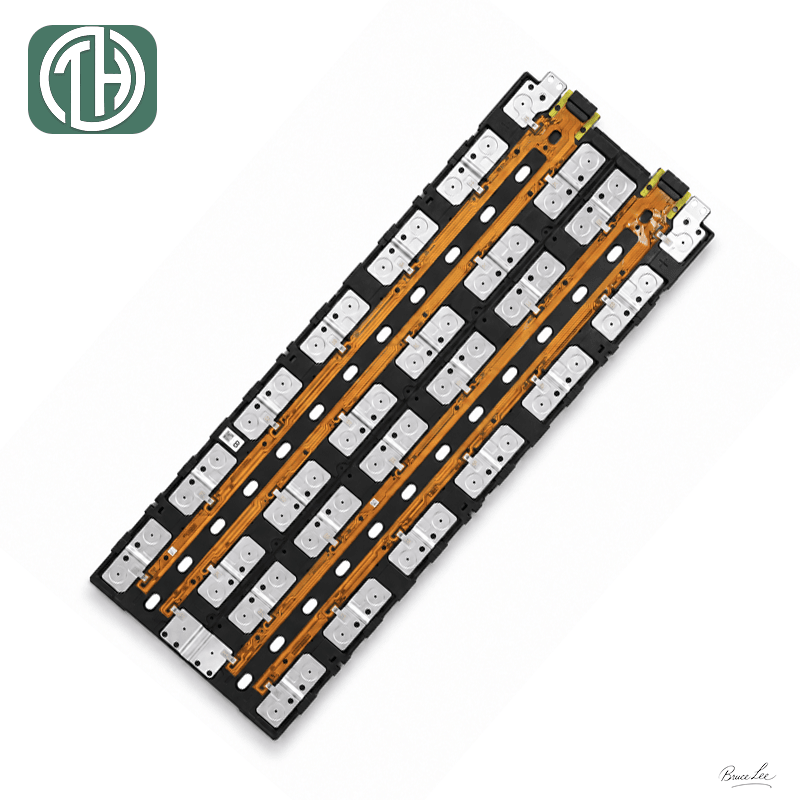

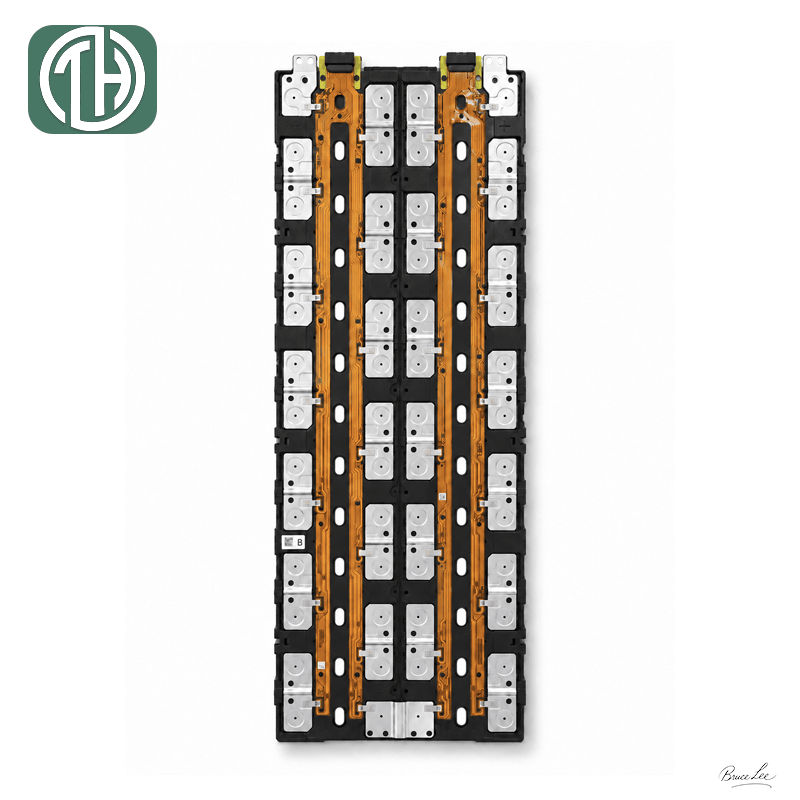

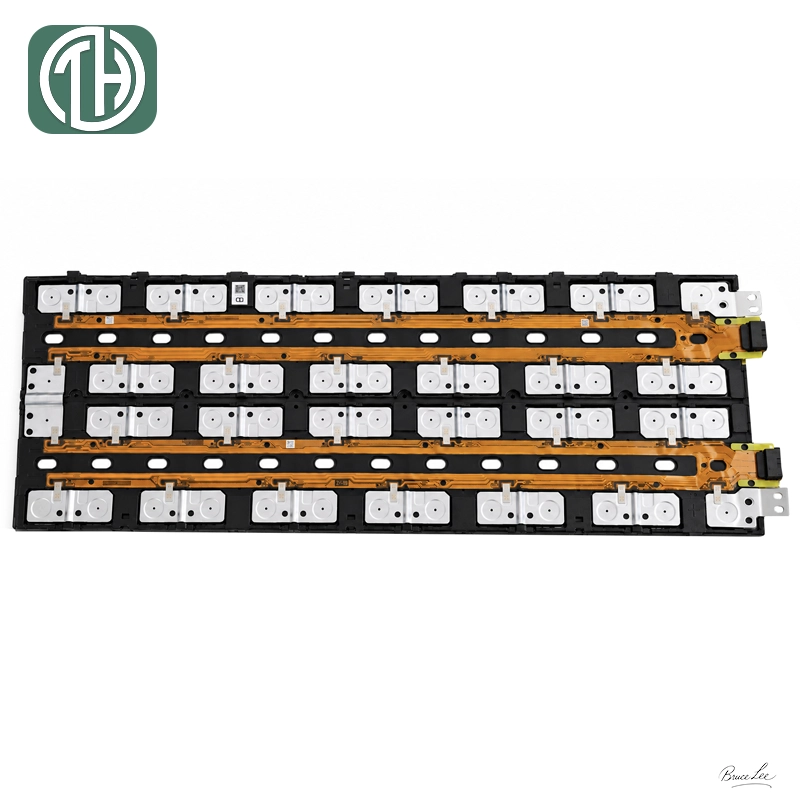

The LYTH 1P26S Cell Contact System is a thermoformed CCS assembly for energy storage battery modules. Designed around a 1P26S cell arrangement, it combines cell interconnections, an insulating structure, and voltage and temperature sensing paths in one assembly.

The integrated layout helps organize electrical connections within the module while routing cell signals to the battery management system (BMS). Its busbar arrangement, sensing points, and mounting details can be matched to the approved module design.

Key Features

• Designed for a 1P26S energy storage module layout
• Thermoformed structure with integrated cell interconnections
• Voltage and temperature sensing paths for BMS connection

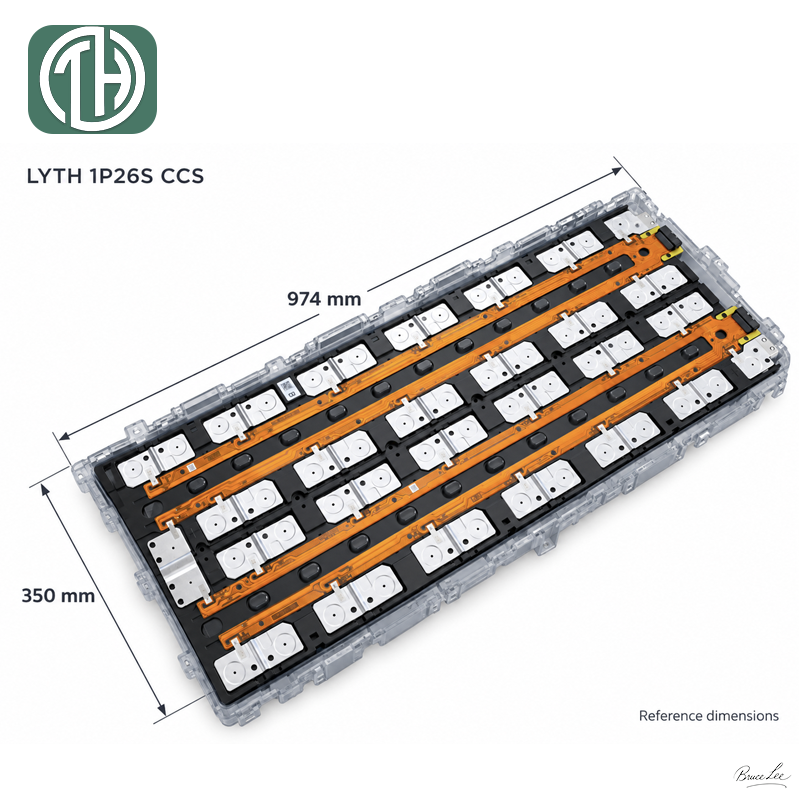

• Reference footprint of 974 × 350 mm
• Connection and mounting details configured to project drawings

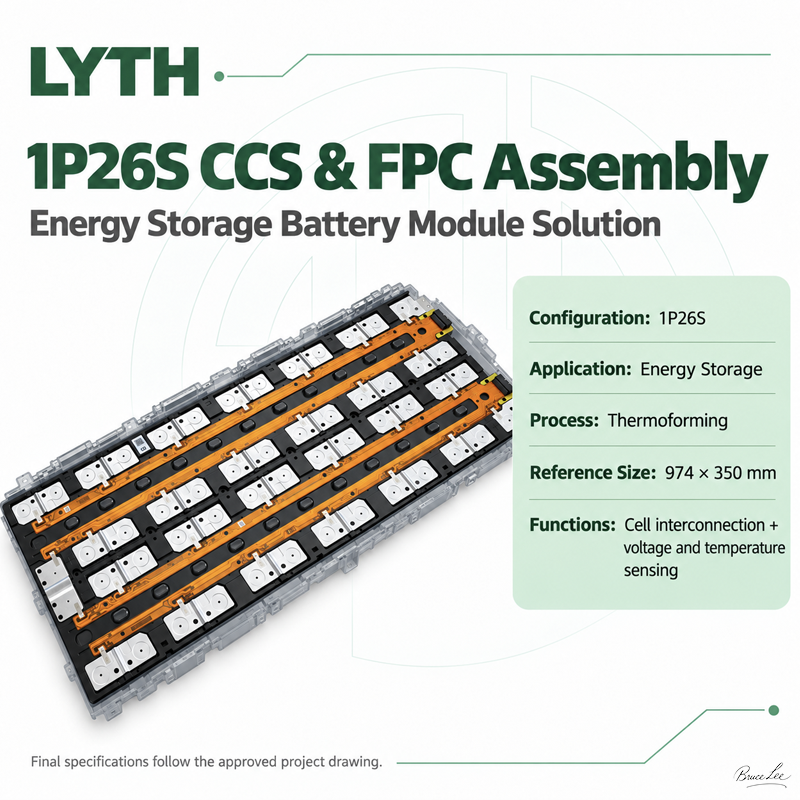

Technical Highlights

• Brand: LYTH
• Product type: Cell Contact System (CCS)
• Configuration: 1P26S
• Application: Energy storage battery modules
• Process: Thermoforming
• Reference dimensions: 974 × 350 mm

Application Positioning

This CCS is intended for energy storage projects using a 1P26S cell layout. It is the cell connection and signal-collection assembly—not a complete battery module or a BMS.

Project Inquiry

For a quotation, please provide the cell model, module drawing, terminal arrangement, target current, sensing requirements, and mounting details. Final dimensions and electrical specifications should be confirmed against the approved drawing and test documents.
