New calb 100ah lifepo4 battery cell L160F100 vs old calb 100ah CA100 lifepo4 battery cell

April 8, 2021

New CALB 100ah lifepo4 battery cell L160F100 vs old CALB 100ah CA100 lifepo4 battery cell

In 2020,CALB launched a new 3.2v 100ah lithium iron phosphate battery cell. What is the difference between the new model and the old one? Today we will compare from various aspects.



1.Appearance

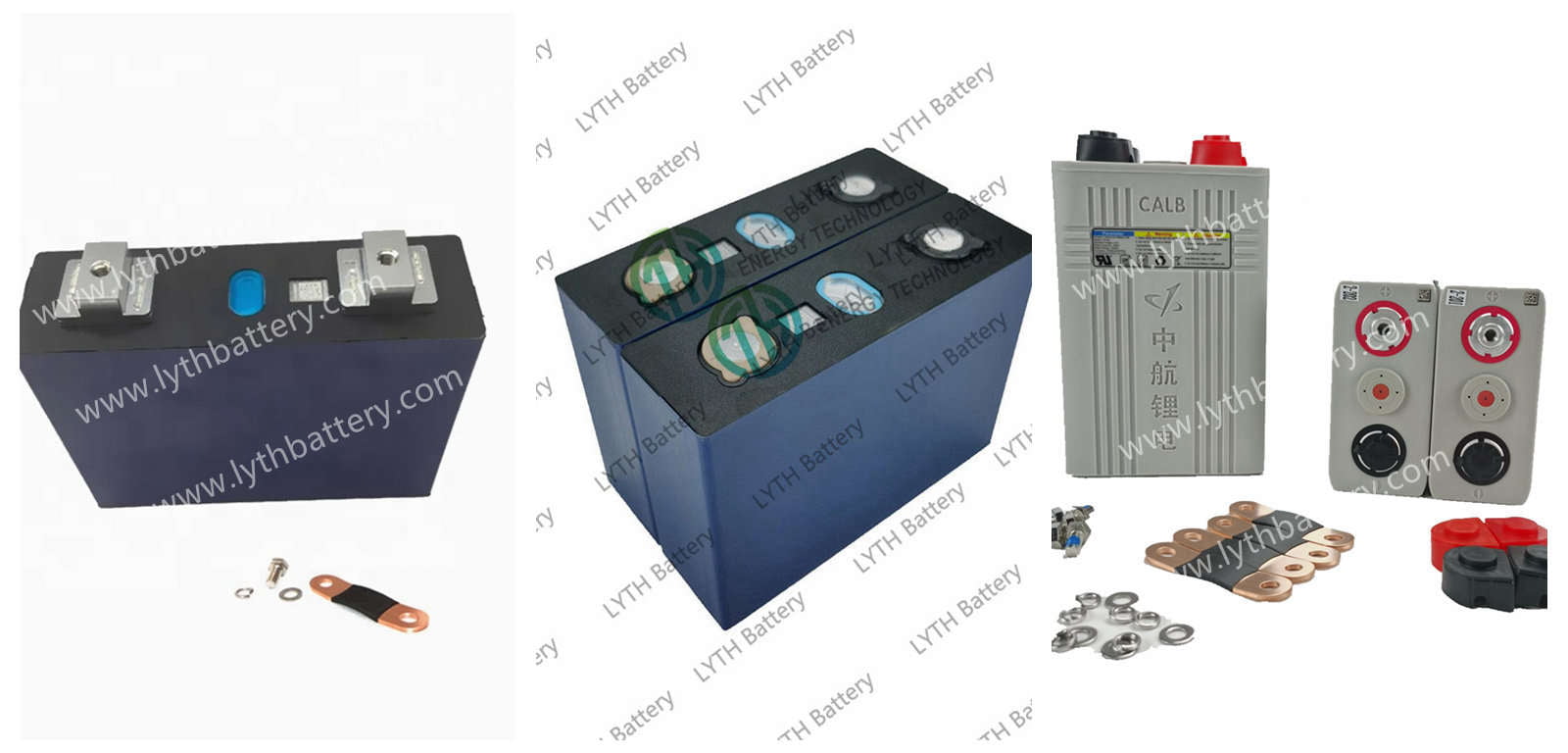

From the picture we can see that the new model is blue aluminum case and the old model is gray plastic case. The size of the new model looks much smaller and lighter than the old one, but their voltage and capacity are the same, which means the capacity density of the new battery is greater than the old one.



2.Model

The old model we usually call CA100, the battery terminal is bolted. You can connect them with screws and busbars. And the new model we call L160F100, mainly used in electric vehicles in China. The terminal is flat, you can weld or add screw on the top.And there is a model L160F100B, has a adaptor with a screw hole on the terminal, you can see the comparison pictures.

3.Cycle life

The process of the new model is better than the old one, the cycle life has been greatly improved, from more than 2000 times to more than 3500 times.

4.Charging and discharging temperature

According to the specification of both battery models, the charge and discharge temperature range of the new battery is also larger than before



The above is the difference between the old and new calb 100ah battery, in order to facilitate comparison, I have listed these into a table with pictures, I hope this will help. If you still have any questions in this area, please feel free to contact us for communication.



New model calb 100ah(L160F100) vs old model calb 100ah(CA100)
new modelnew modelold model
picture3.2V 100Ah lithium LiFePO4 battery cells
modelL160F100L160F100BCA100
caseblue aluminum caseblue aluminum casegray plastic case
weight2kg2kg3.3kg
Dimension160*49.9*118.5mm160*49.9*130mm142*67*215.5mm
dimensions of 3.2 v 100Ah LiFePO4 cell-LYTH
cycle life>3500times>3500times>2000times
Charging temperature-5~60℃-5~60℃0~45℃
Discharging temperature-20~60℃-20~60℃-20~55℃
