3.2V 80Ah lithium lifepo4 battery

» Lifepo4 Prismatic Cells » CALB Battery Cells » 3.2V 80Ah lithium lifepo4 battery

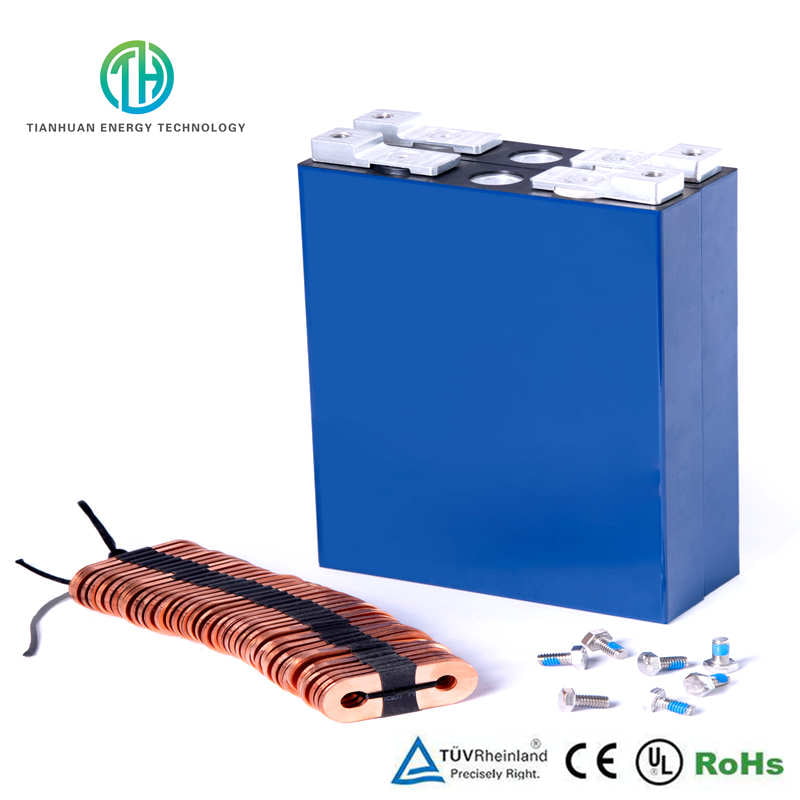

3.2V 80Ah lithium lifepo4 battery

CATEGORY AND TAGS:
CALB Battery Cells, Lifepo4 Prismatic Cells

CE, UL, MSDS and UN38.3 have been approved.(LYTH-LFP80)3.2V 80Ah Lithium Iron Phosphate(LiFePO4) battery cells was already passed all of the safety tests(overcharge, overdischarge, AGV (Automated Guided Vehicle),RV( Recreational Vehicle) over temperature, short circuit, drop, crush, needle puncture tests, etc). These battery cells do not catch fire, no explosion and no leakage.

enquiry
  • Specifications
  • FEATURES
  • APPLICATIONS
  • DOWNLOADS

3.2V 80Ah lithium LiFePO4 battery-LYTH

LYTH Battery – The Best Partner for your Lithium Battery Solution & High Performance LiFePO4 Prismatic Battery. LYTH LiFePO4 cells have a wide range of applications, such as utility and renewable (solar and wind) energy storage,electric vehicles,uninterruptible power supply (UPS) for data centers,cell tower/communications power,marine vessels,stationary power generators AGV (Automated Guided Vehicle),RV( Recreational Vehicle) and much more.

Battery Cell TypeLithium Iron Phosphate (LiFePO4) battery
Model NumberLYTH-LFP80
Nominal Voltage3.2V
Nominal Capacity80Ah
Cycle Life>2000 cycles
Working Voltage2.5-3.65V
Internal Resistance≤0.3mΩ
End of discharge Voltage2.5V
Charge Method0.3C-0.5C  CC/CV
Max.Continuous discharge current80A
Max (Long)Pulse Discharge Current160A
Max (Short)Pulse Discharge Current240A/30S
Dimensions(mm)L135.2mm x W29.5mm x H220.5mm
Weight1.87±0.1KGS
Shell MaterialAluminium

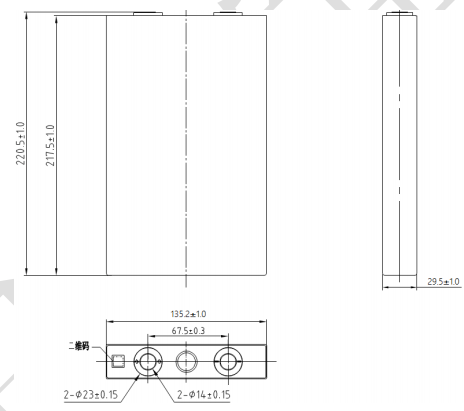

Cell Dimensions

dimension of 3.2V 80Ah lithium lifepo4 battery



















A typical curve of single cell discharged at room temperature

discharge curve of 3.2V 80Ah lithium lifepo4 battery



















Individual pricing for large scale projects and wholesale demands is available.

Please contact us for more details:

Email: info@lythbattery.com
Mobile/WhatsApp/Wechat: +86 13603880312

contact information

  • A Grade,New,with all test report
  • Real Capacity will be 88Ah
  • With CE,UL,MSDS,UN38.3
  • Highly safe, no fires, no explosions.
  • High Power Performance
  • High Energy Density ( 130~140wh/Kg)
  • High Gravimetric and Volumetric Power Density.
  • Longer Cycle life

E-bike, Golf cart, Solar street light, Forklift, UPS, yacht,AGV (Automated Guided Vehicle),RV( Recreational Vehicle), Electric vehicle, Energy storage system(ESS) for wind and solar power, Household storage system and etc.

Application of LiFePO4 prismatic cells-LYTH
