Product Details
Place of Origin: China
Brand Name: CALB
Certification : CE, UN38.3, MSDS
Model Number: L173F324A
Battery type : LFP
Shipping Terms
Packaging Details cartons , pallets or plywood cases
Shipping terms: EXW, FOB, CIF, DDU, DDP
Shipping way: By air, by sea, by land
Payment Terms
Retail Price/Wholesale Price Negotiable
Payment Terms T/T (Wire transfer)
The CALB L173F324A is a large-capacity prismatic LiFePO₄ (LFP) battery cell from CALB’s L173 series, designed for high-reliability energy storage and heavy-duty applications. With its high capacity, long cycle life, and excellent safety performance, this cell is widely used in residential, commercial & industrial (C&I) energy storage systems, UPS solutions, and other long-life power applications.
Built on CALB’s proven lithium iron phosphate chemistry, the L173 series delivers stable performance, high thermal stability, and outstanding durability, making it a preferred choice for large-scale battery modules and battery packs.

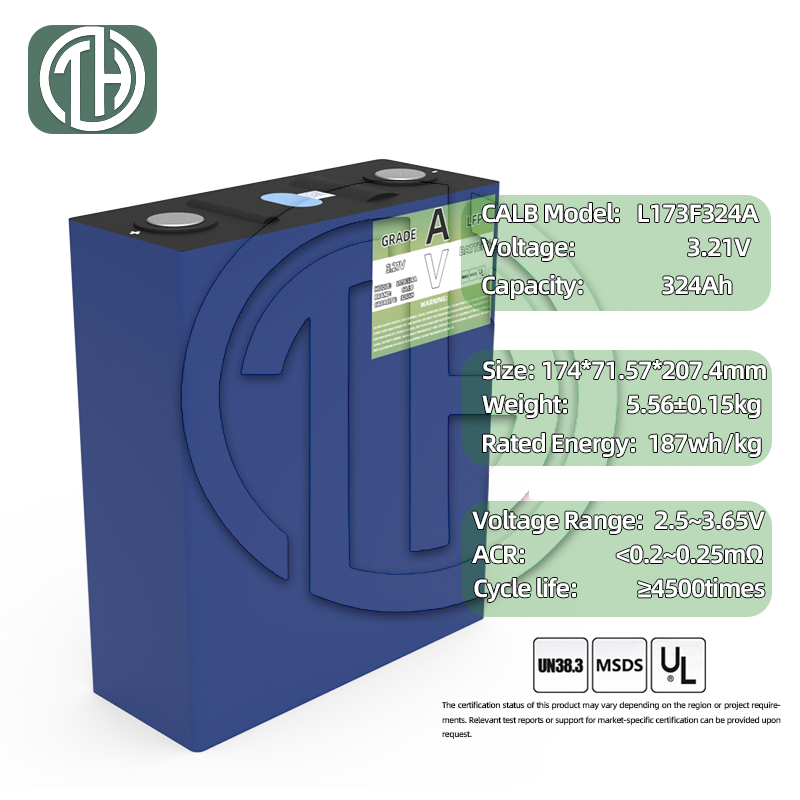

| No. | Item | Parameter | Remarks |
|---|---|---|---|
| 1 | Rated Capacity | 324 Ah | Standard Discharge |
| 2 | Rated Voltage | 3.21 V | Standard Discharge |
| 3 | Rated Energy | 1043.3 Wh | Standard Discharge |
| 4 | Cell Weight | 5.56 ± 0.15 kg | — |
| 5 | Mass Energy Density | 187 Wh/kg | Standard Discharge |
| 6 | Cell Volume | 2.55 L (without terminal) | — |
| 7 | Volume Energy Density | 409 Wh/L | Standard Discharge |
| 8 | AC Internal Resistance (ACR) | 0.2 – 0.25 mΩ | 29% SOC, Room Temperature, AC Impedance, 1000 Hz |
| 9 | Charging Temperature | -5 ~ 65 °C | — |
| 10 | Fast Charging Time | ≤ 36 min | 25°C, 20%–80% SOC |
| 11 | Voltage Range | 2.5 ~ 3.65 V | 0°C < T ≤ 65°C |
| 2.0 ~ 3.65 V | -30°C ≤ T ≤ 0°C | ||
| 12 | Discharging Temperature | -30 ~ 65 °C | — |
| 13 | Storage Temperature | -40 ~ 65 °C | — |
With a capacity exceeding 300Ah, the L173F324A significantly reduces the number of cells required per system, simplifying battery pack design and improving overall system efficiency.
LiFePO₄ chemistry provides superior thermal and chemical stability compared with high-nickel lithium systems, greatly reducing the risk of thermal runaway and ensuring safe operation in demanding environments.
The CALB L173F324A combines high capacity, long cycle life, and proven safety, making it an excellent choice for modern energy storage systems that demand reliability, scalability, and long-term value.
Individual pricing for large scale projects and wholesale demands is available.
