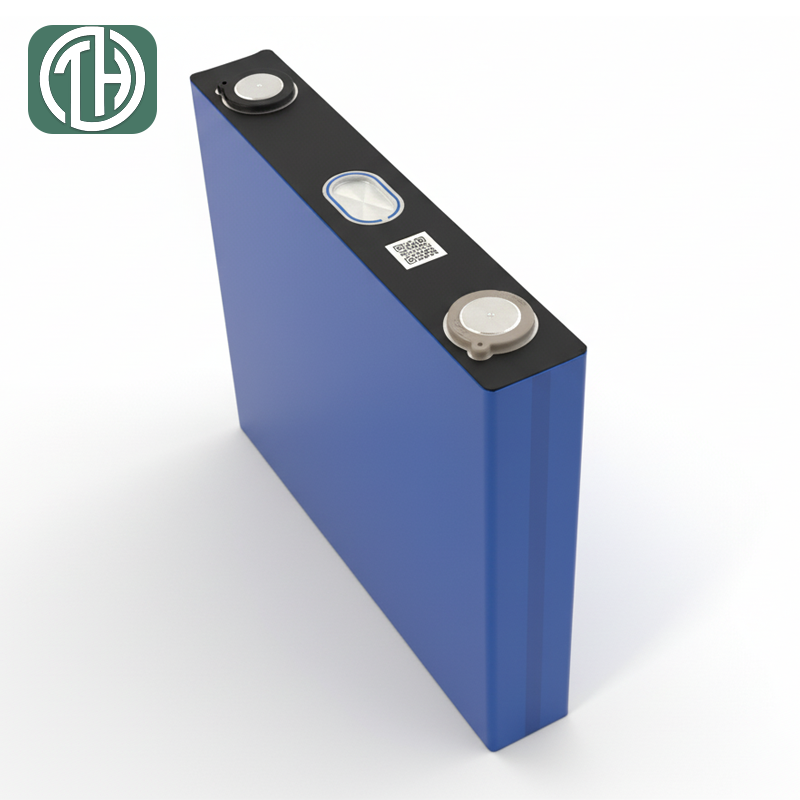

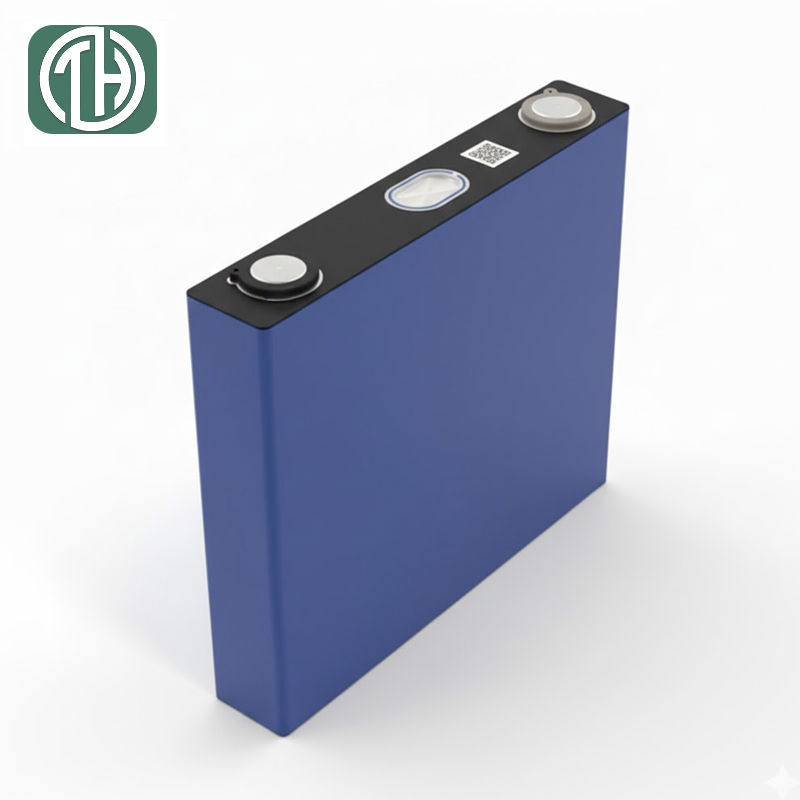

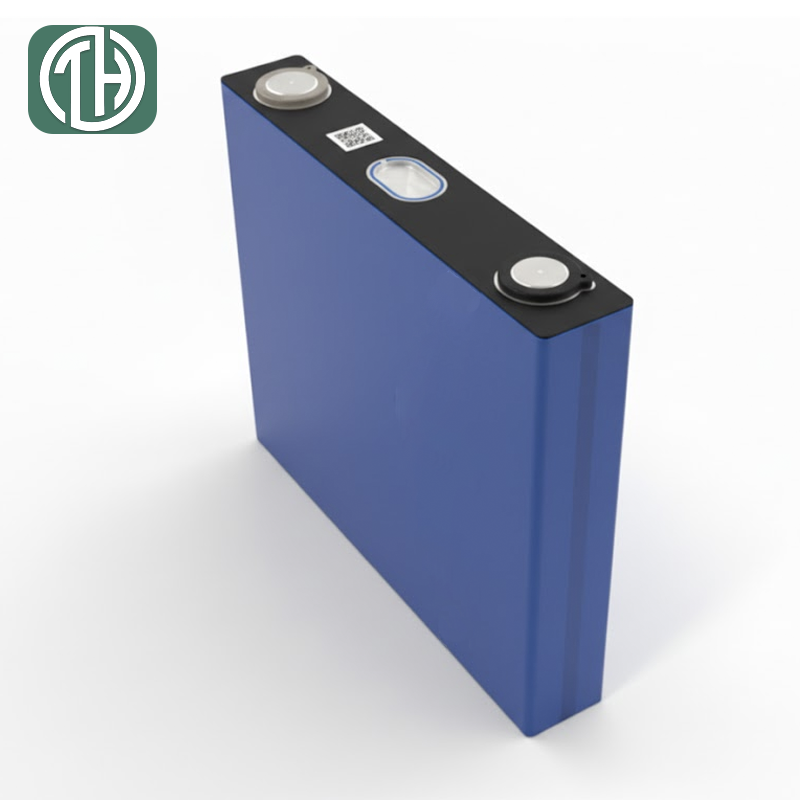

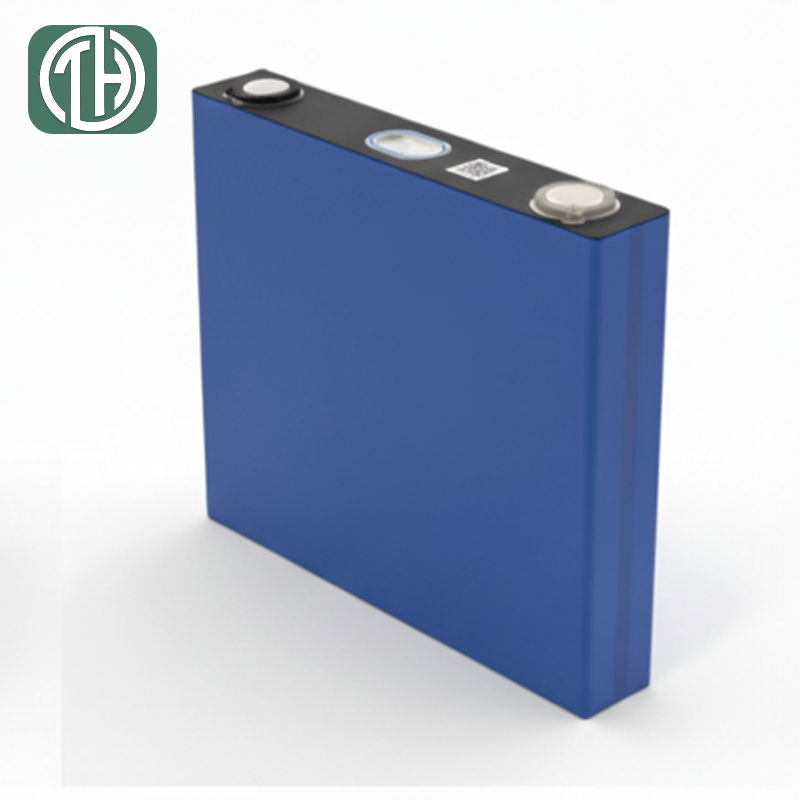

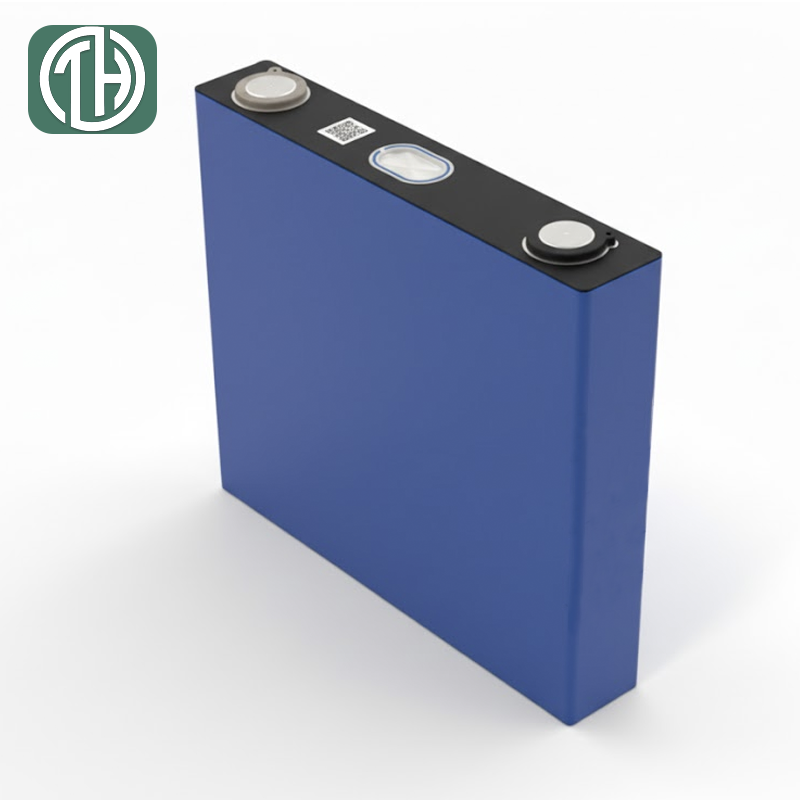

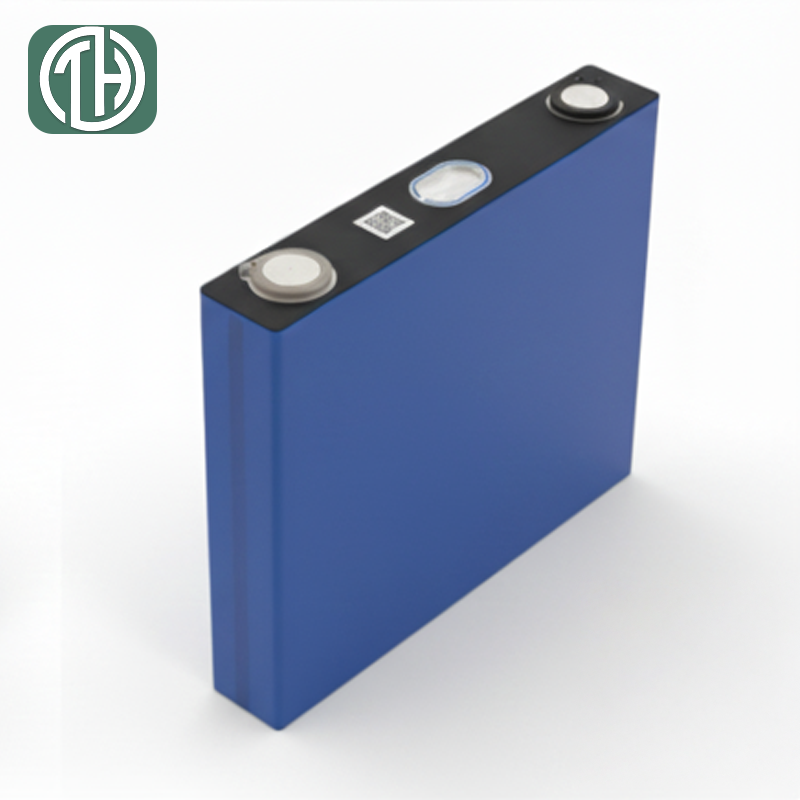

The Lishen LP33200173-125Ah is a high-performance lithium iron phosphate (LiFePO4) prismatic battery cell designed for energy storage systems, electric vehicles, industrial power solutions, and custom battery pack applications. Featuring a nominal capacity of 125Ah and a nominal voltage of 3.2V, this cell delivers approximately 400Wh of energy with excellent safety, long cycle life, and stable performance.
Thanks to its compact dimensions and low internal resistance, the LP33200173-125Ah is widely used in residential ESS, commercial energy storage, golf carts, AGV systems, low-speed EVs, marine batteries, and backup power systems. Its slim 33.2mm profile also makes it an ideal choice for customized battery pack integration.
The Lishen LP33200173-125Ah cell shares the same mainstream form factor as many popular 125Ah LiFePO4 cells previously offered by CALB and EVE, making it an ideal replacement option for existing battery designs and production lines.
With several legacy 125Ah cell models gradually being phased out or facing limited market availability, the LP33200173-125Ah provides a reliable alternative without requiring major modifications to battery module structures, busbars, fixtures, or battery pack enclosures. This helps manufacturers and system integrators maintain project continuity while reducing redesign costs and development time.
For customers currently using CALB 125Ah, EVE 125Ah, or similar 173-series LiFePO4 cells, LYTH can provide cell compatibility evaluation, module redesign support, and customized battery pack solutions.
Provides 125Ah capacity and approximately 400Wh energy output in a compact prismatic design, helping optimize system energy density.
Utilizes LiFePO4 chemistry, offering superior thermal stability, enhanced safety, and reduced risk of thermal runaway compared with conventional lithium-ion batteries.
Designed for more than 3,000 cycles at 80% DOD, helping reduce total ownership costs over the battery system lifecycle.
Internal resistance ≤0.5mΩ supports high-efficiency charging and discharging with minimal energy loss.
Suitable for demanding environments with discharge temperatures ranging from -30°C to 60°C.

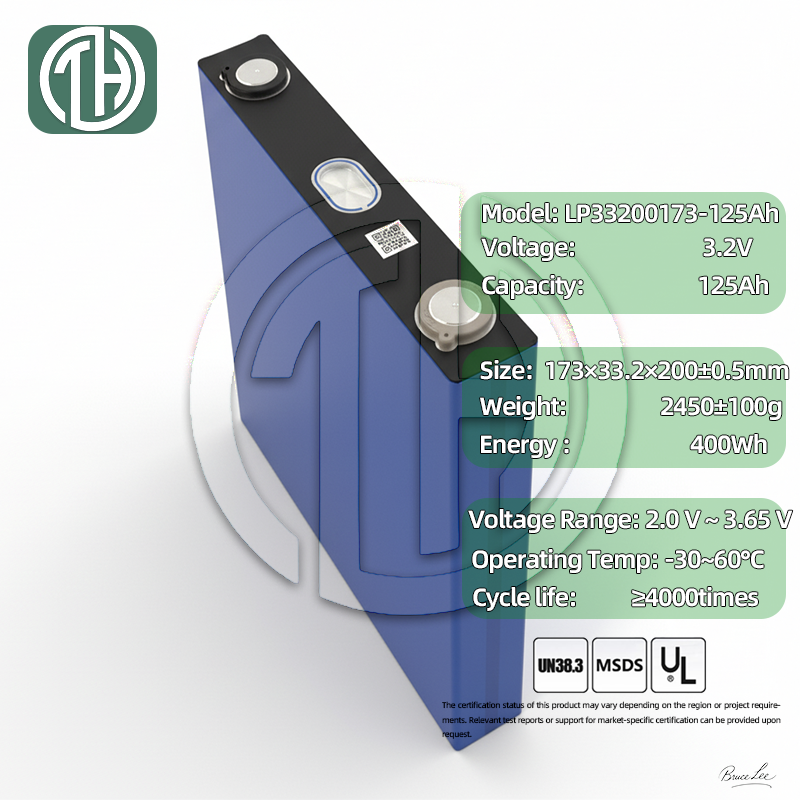

| Item | Specification |
|---|---|
| Cell Model | LP33200173-125Ah |
| Cell Chemistry | LiFePO4 (LFP) |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 125Ah |
| Rated Energy | 400Wh |
| Internal Resistance | ≤0.5mΩ |
| Charging Voltage | 3.65V |
| Standard Charge Current | 1C (125A) |
| Peak Charge Current | 2C (250A, 60s) |
| Standard Discharge Current | 1C (125A) |
| Peak Discharge Current | 3C (375A, 60s) |
| Discharge Cut-off Voltage | 2.5V (>0°C) / 2.0V (≤0°C) |
| Cycle Life | ≥3000 Cycles @ 80% DOD |
| Charge Temperature | 0°C ~ 60°C |
| Discharge Temperature | -30°C ~ 60°C |
| Storage Temperature | -20°C ~ 35°C (6 Months) |

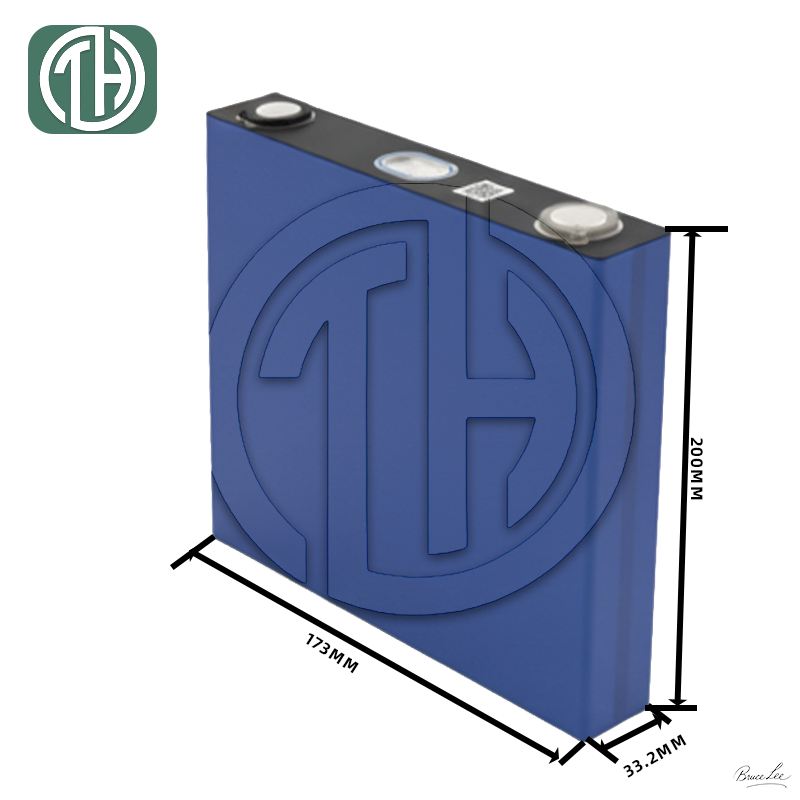

| Dimensions (L×W×H) | 200 × 33.2 × 173 mm |
| Weight | 2.45 ± 0.1 kg |
| Terminal Type | M6 Threaded Terminal |
As a professional lithium battery manufacturer and battery pack integrator, LYTH Battery supplies genuine Grade-A Lishen, CALB, EVE, REPT, and SVOLT battery cells for global customers.
Our services include:
Whether you need a 12V, 24V, 48V, or high-voltage battery system, LYTH can provide customized solutions tailored to your project requirements.
