The REPT 3.2V 320Ah LiFePO4 prismatic battery cell delivers high energy capacity, long cycle life, and stable thermal performance for ESS, telecom backup, and industrial battery system integration. With 1.024kWh nominal energy, low internal resistance, and up to 8000 cycles under specified test conditions, it is a strong choice for high-capacity battery pack assembly.
Shipping Terms
Packaging Details cartons , pallets or plywood cases
Shipping terms: EXW, FOB, CIF, DDU, DDP
Shipping way: By air, by sea, by land
Payment Terms
Retail Price/Wholesale Price Negotiable
Payment Terms T/T (Wire transfer)
The REPT 3.2V 320Ah LiFePO4 prismatic battery cell is built for high-capacity energy storage applications that require stable performance, long cycle life, and practical pack integration. With 320Ah nominal capacity and 3.2V nominal voltage, each cell delivers 1.024kWh of nominal energy, making it a suitable foundation for battery modules and larger storage systems.
As a large-format LFP prismatic cell, this model supports energy storage applications where reliability, thermal stability, and long-term cycling performance are important. It is suitable for residential and commercial ESS, telecom backup systems, UPS applications, and custom industrial battery solutions.

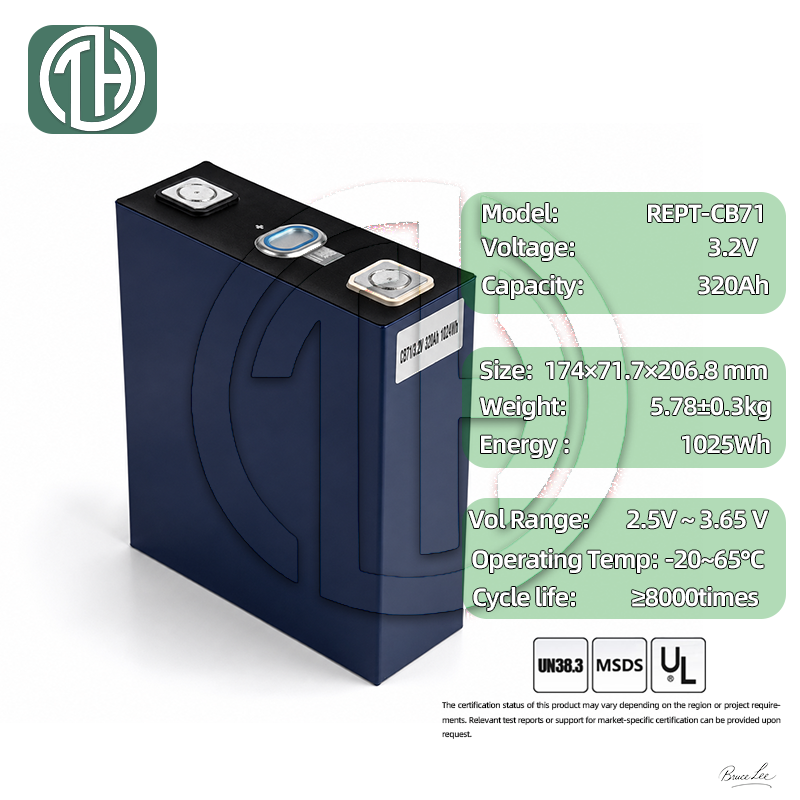

| Item | Value |
|---|---|
| Model | REPT CB71-320Ah |
| Chemistry | LiFePO4 |
| Nominal Voltage | 3.2V |
| Capacity | 320Ah |
| Energy | 1024Wh |
| Voltage Range | 2.5V-3.65V |
| Cycle Life | ≥ 8000 cycles |
| Internal Resistance | ≤ 0.30 mOhm |
| Weight | 5.78 ± 0.20kg |

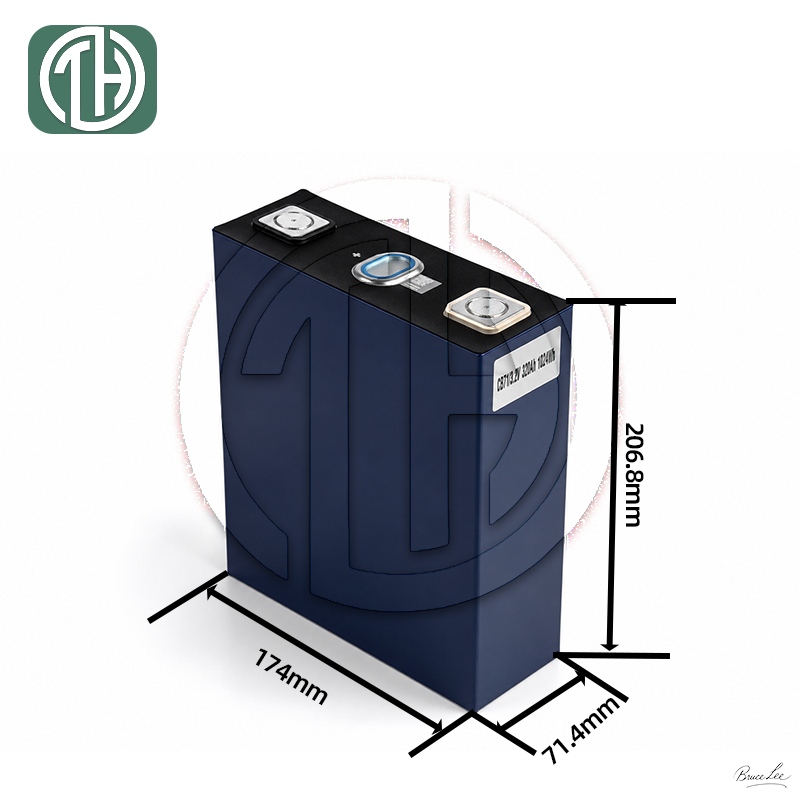

| Dimensions | 71.7 × 174.0 × 206.8 mm |
| Operating Temperature | Charge: 0°C to 55°C; Discharge: -30°C to 60°C |
Applications
1. Residential energy storage systems
2. Commercial and industrial ESS
3. Telecom backup power systems
4. UPS and emergency backup systems
5. Solar battery storage integration
6. Custom battery module and battery pack development
7. Industrial DC battery systems
At LYTH, we support customers with practical battery sourcing and integration solutions for energy storage and industrial applications. In addition to supplying high-capacity prismatic battery cells, we also support module development and custom PACK integration based on real project requirements. For customers building ESS products or custom battery systems, LYTH can help connect the right cell platform with scalable downstream solution support.
