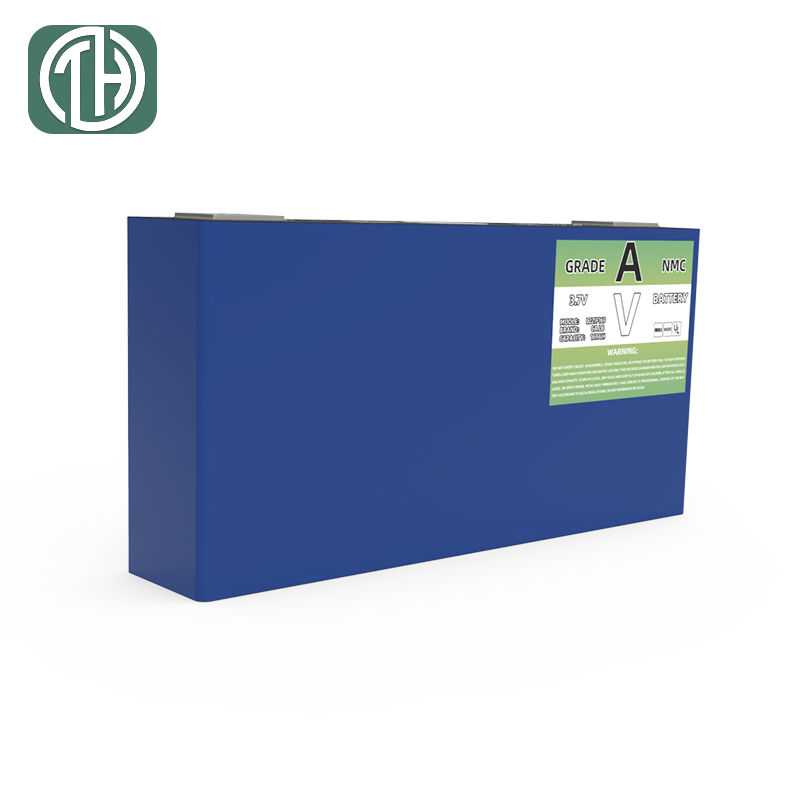

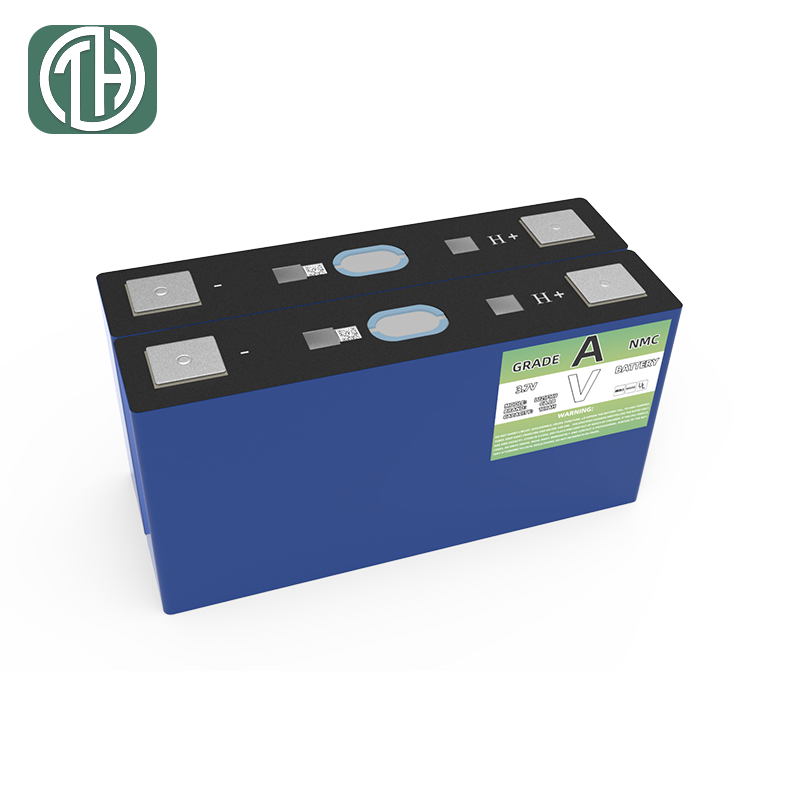

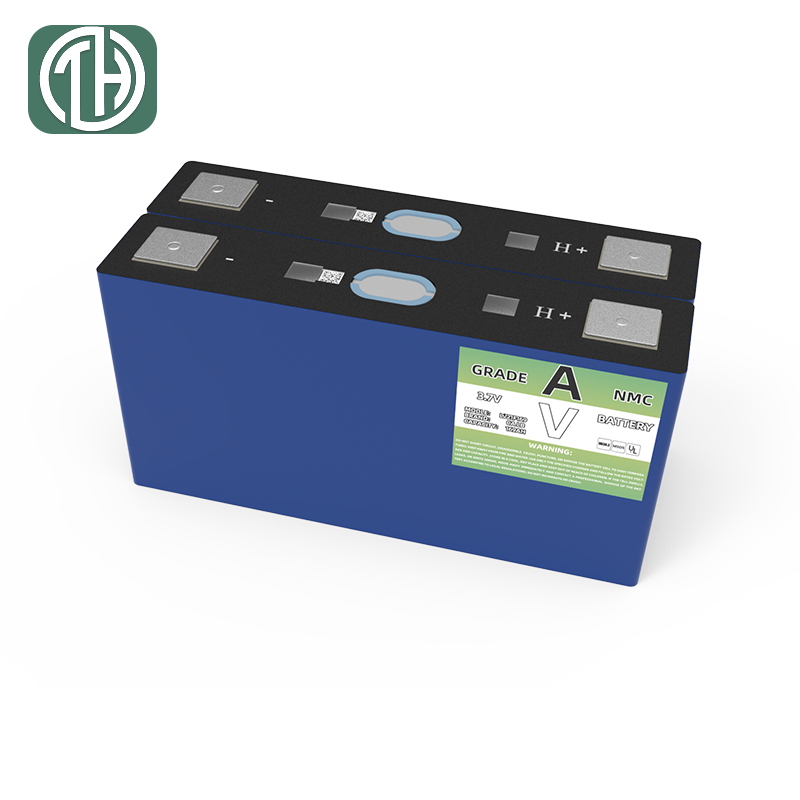

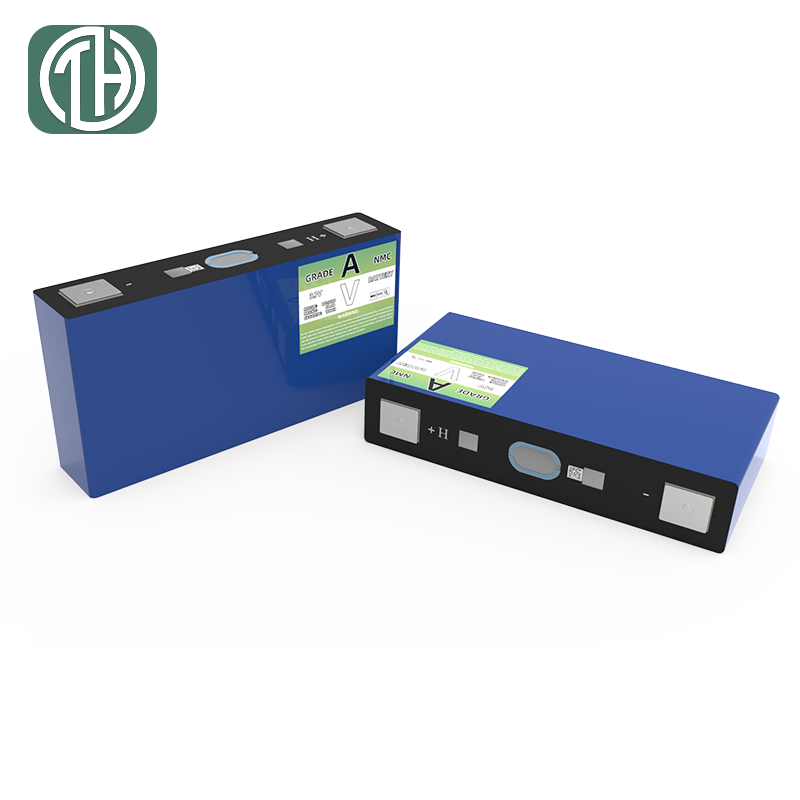

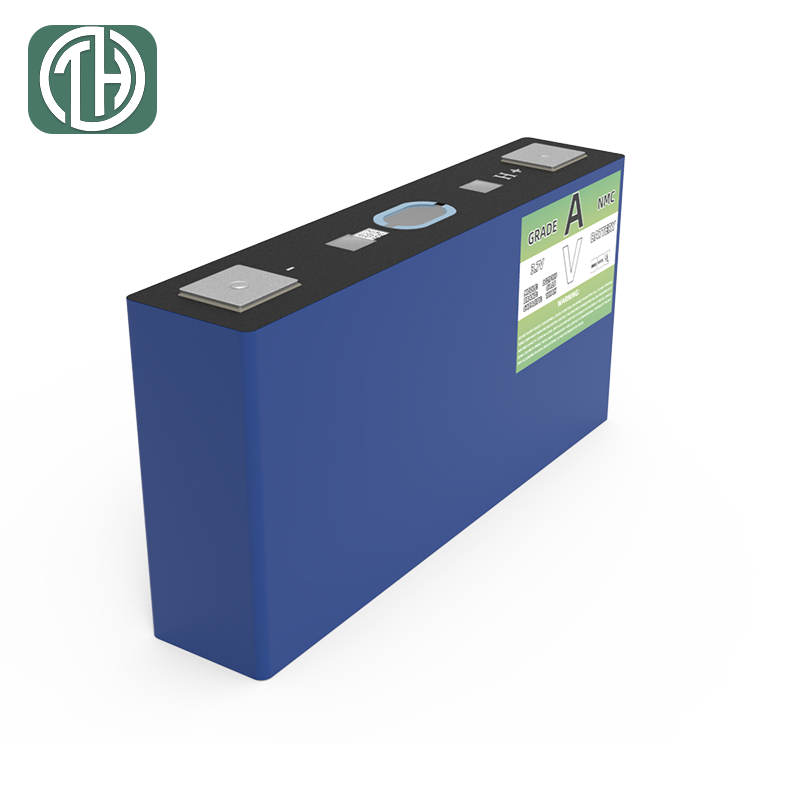

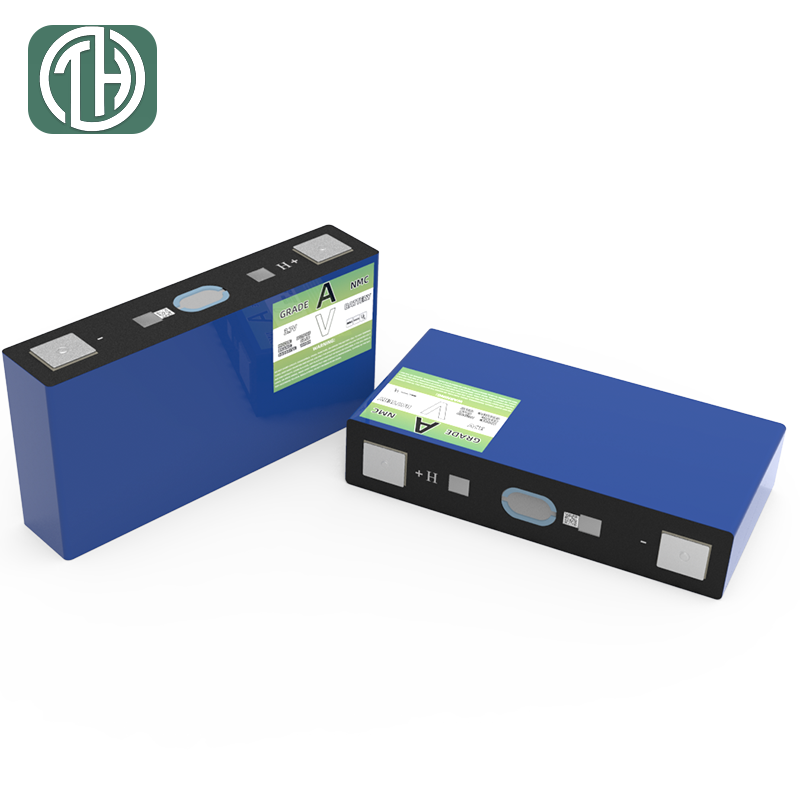

CALB 169Ah NMC Prismatic Battery Cell

CATEGORY AND TAGS:
CALB Battery Cells, Lifepo4 Prismatic Cells

L221N169 NMC battery module is an standard Prismatic lithium ion battery cell with 3.2V and 314Ah Capacity.

Shipping Terms
Packaging Details cartons , pallets or plywood cases
Shipping terms: EXW, FOB, CIF, DDU, DDP
Shipping way: By air, by sea, by land

Payment Terms
Retail Price/Wholesale Price Negotiable
Payment Terms T/T (Wire transfer)

enquiry

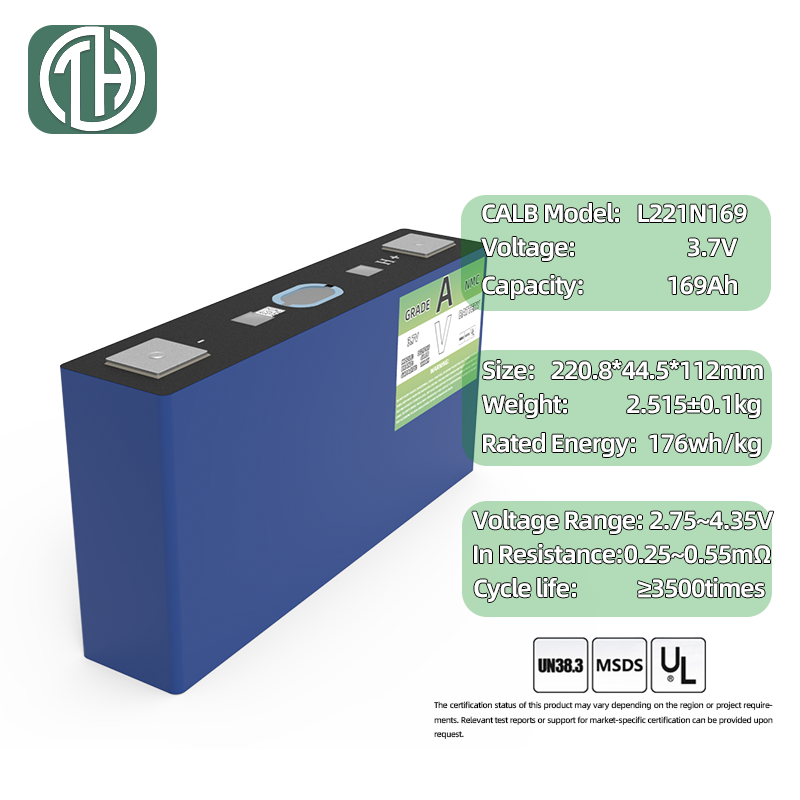

Specifications

Explore the CALB L221N169A 169Ah NMC prismatic battery cell for EV battery packs, module development, and traction battery system integration.The CALB L221N169A is a prismatic lithium-ion battery cell designed for vehicle battery systems that require high capacity, stable output, and practical integration into modules and PACK assemblies. With 169Ah rated capacity at 1C discharge and a large-format prismatic structure, this cell is well suited for EV battery pack development, commercial vehicle electrification, and custom battery system engineering. Its combination of energy output, temperature adaptability, and established prismatic format makes it a strong cell platform for downstream module and PACK solutions.

Cell Foundation:

Item	Value
Manufacturer	CALB
Cell Model	`L221N169A`
Cell Type	Prismatic Lithium-Ion Battery
Chemistry	`NMC`
Nominal Capacity	`173Ah @ 1/3C`, `169Ah @ 1C`
Minimal Capacity	`173Ah @ 1/3C`, `169Ah @ 1C`
Average Voltage	`3.73V @ 1/3C`, `3.66V @ 1C`
Working Voltage	`2.8-4.35V` when `T >= 0C`
Low-Temperature Voltage Range	`2.5-4.35V` when `-20C <= T < 0C`
Extreme Low-Temperature Voltage Range	`2.2-4.35V` when `-30C <= T < -20C`
Internal Resistance	`0.25-0.55 mOhm` at `65% SOC`
Standard Charging Time	`~4h`
Recommended SOC Window	`3%-97%`
Charging Temperature	`-20C to 55C`
Discharging Temperature	`-30C to 55C`
Cell Weight	`2515 +/- 30g`
Shell Material	`Aluminium alloy`

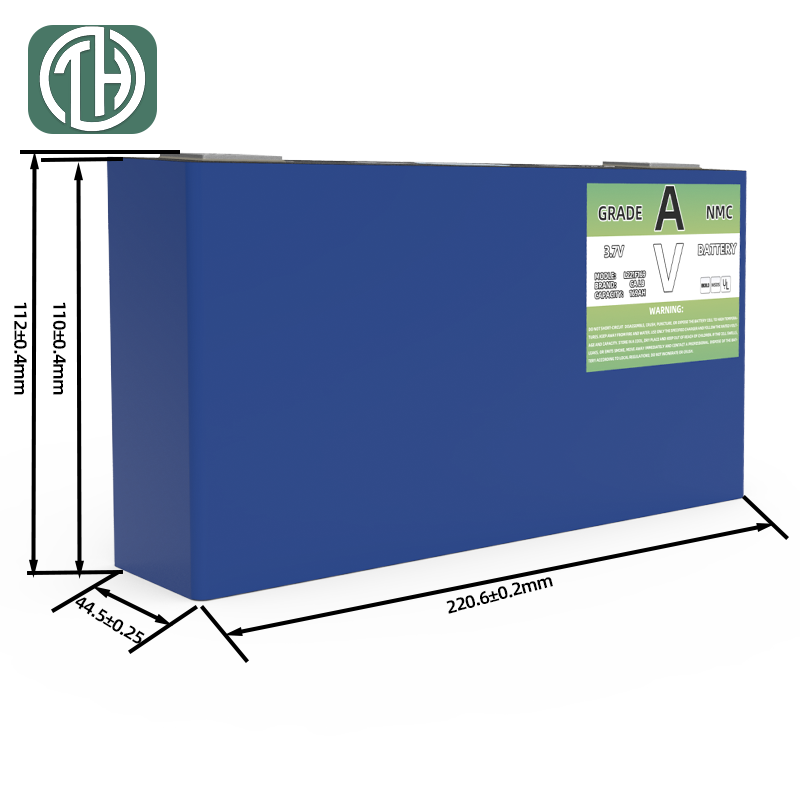

Cell Width	`220.8 +/- 0.2mm`
Cell Thickness	`44.5 +/- 0.25mm`
Cell Height	`112 +/- 0.4mm`
Standard Charge Current	`169A`
Maximum Short Pulse Discharge Current	`500A for 10s`
Cycle Life	`>=2000 cycles` to `80%` capacity retention
Room Temperature Capacity Retention	`>=97%`Applications:

Application Area	Description
EV Battery Packs	Suitable for passenger EV and traction battery system integration
Commercial Vehicle Electrification	Can support higher-capacity battery system design for commercial applications
Battery Module Development	A practical cell platform for custom prismatic module engineering
Custom PACK Projects	Suitable for downstream PACK integration with project-specific electrical architecture
Energy and Power System Prototyping	Useful for engineering teams developing large-format lithium battery systems

LYTH focuses on turning high-quality battery cells into practical module and PACK solutions for real-world vehicle and energy projects. Based on customer requirements, we support cell selection, module structure planning, and PACK integration for OEM/ODM and customized battery system development. If you are looking for a large-format prismatic cell for EV battery platforms or custom energy solutions, LYTH can support your project from core cell selection to complete battery system cooperation.
