Product Details
Place of Origin: China
Brand Name: REPT
Certification: MSDS, UN38.3
Model Number: CE79148102EB
Battery type : NMC
Shipping Terms
Packaging Details: Cartons , pallets or plywood cases
Shipping terms: EXW, FOB, CIF, DDU, DDP
Shipping way: By air, by sea, by land
Payment Ways
Retail Price/Wholesale Price: Negotiable
Payment Terms: T/T (Wire transfer), Paypal

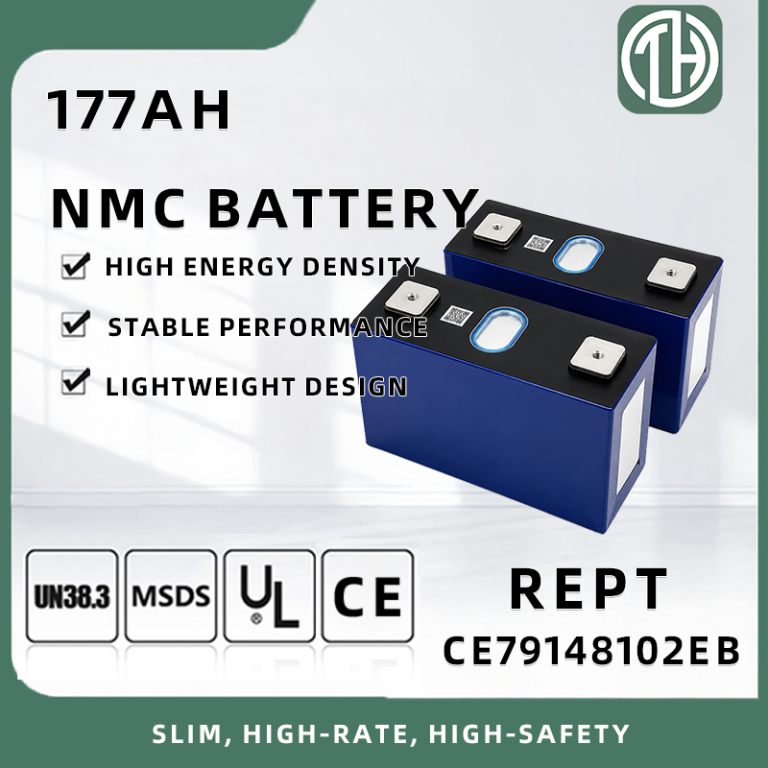

Looking for a reliable 177Ah NCM battery cell for your EV module or custom battery pack project? The REPT 177Ah NCM523 prismatic cell is a practical choice for customers who need stable supply, dependable performance, and better integration support.
With up to 177Ah nominal capacity at 1/3C, 3.73V nominal voltage, and up to 348A continuous discharge, this cell is built for demanding power applications. Its compact prismatic format, controlled dimensions, and solid structural consistency make it easier to use in module design, pack development, and project-based battery assembly.
Technical Specifications
| Item | Specification |
|---|---|
| Model | CE79148102EB-177Ah |
| Battery Type | Li-ion Prismatic Cell |
| Cathode Material | NCM523 |
| Nominal Capacity | >=177Ah (1/3C), >=174Ah (1C) |
| Nominal Voltage | 3.73V (1/3C), 3.66V (1C) |
| Operating Voltage Range | 2.8V-4.35V |
| Max Continuous Discharge Current | 348A |
| Max Pulse Discharge Current | 500A @ 30s |
| Max Continuous Charge Current | 210A |
| Max Pulse Charge Current | 348A @ 10s |
| Dimensions | 79.22 ±0.3 mm x 149.10 ±0.6 mm x 102.77 ±0.6 mm |
| Weight | 2.75 ±0.1 kg |
| Energy Density | 240Wh/kg, 550Wh/L |
| Internal Resistance | <=0.6 mOhm |
| Charge Temperature | -20C to 55C |
| Discharge Temperature | -30C to 55C |
| Storage Temperature | -30C to 55C |
| Recommended SOC Range | 2%-97% |
What makes the difference is LYTH’s integration capability. We do not simply offer battery cells. We support customers with model matching, technical communication, customized battery solutions, and delivery coordination based on real project needs. Whether you are evaluating samples, developing a battery module, or preparing for volume procurement, LYTH can help shorten your sourcing cycle and improve project response efficiency.
If your project needs a branded REPT battery cell with responsive support, customization options, and fast delivery coordination, LYTH is ready to work with you.
